Ford 5030
|
|
| Production | |
| Manufacturer | Ford |
| Utility tractor | |
| Built in Basildon, England | |
| Original price was $25,500 in 1998 | |
| Ford 5030 Engine | |
| Ford 4.2L 4-cyl diesel | |
 Engine details ... |
| Ford 5030 Transmissions | |
| 8-speed gear | |
| 8-speed mechanical shuttle | |
| 16-speed two-speed power shift | |
 Transmission details ... |
| Ford 5030 Power | |
| PTO (claimed) | 62 hp 46.2 kW |
| Drawbar (tested) | 53.84 hp 40.1 kW |
| PTO (tested) | 63.56 hp 47.4 kW |
 Performance test details ... | |
| Mechanical | |
| Two- or four-wheel drive | |
| Differential lock | mechanical rear |
| Power steering | |
| Differential wet disc brakes | |
| Two-post ROPS. Cab optional. | |

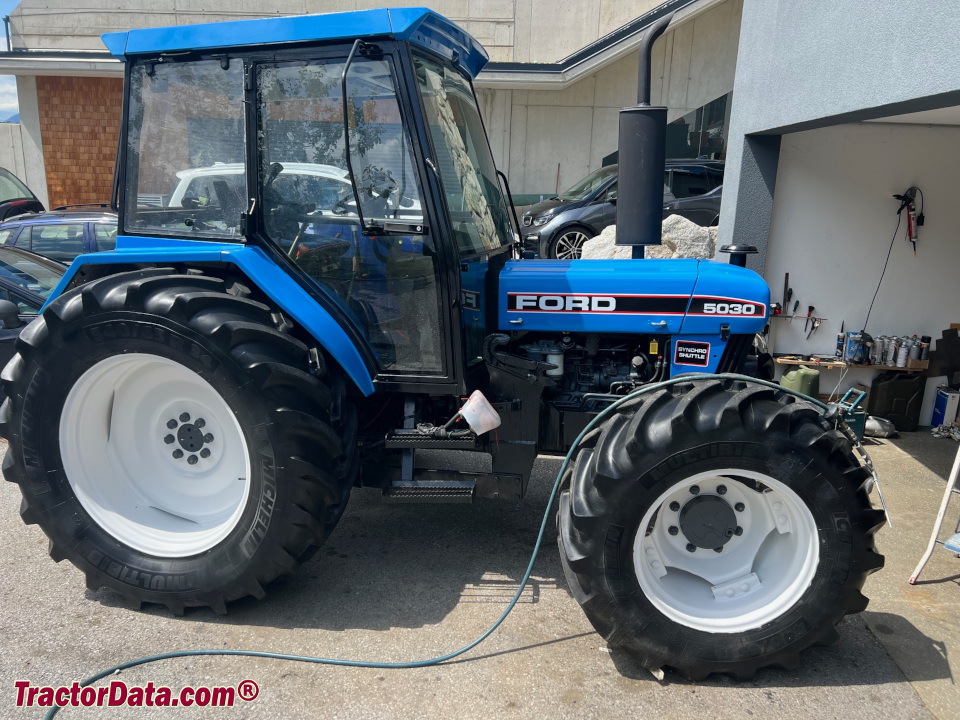

| Photos | |
 | |
 Ford 5030 photos... | |
| Capacity | |
| ROPS Fuel | 17.3 gal 65.5 L |
| Cab Fuel | 25.3 gal 95.8 L |
| Hydraulic system | 12.7 gal 48.1 L |
| Hydraulics | |
| Type | open center |
| closed center OptOptional | |
| Capacity | 12.7 gal 48.1 L |
| Valves | 2 to 4 |
| Pump flow | 8 gpm 30.3 lpm |
| 14.4 gpmOptOptional 54.5 lpm | |
| Steering flow | 3.6 gpm 13.6 lpm |
| Tractor hitch | |
| Rear Type | II/I |
| Control | top-link draft sensing |
| Rear lift | 3080 lbs 1397 kg |
| Power Take-off (PTO) | |
| Rear PTO | independent |
| Rear PTO Type | 540 (1.375) |
| Engine RPM | 540@1800 |
| Dimensions & Tires | |
| 2WD Wheelbase | 89.6 inches 227 cm |
| 4WD Wheelbase | 89.2 inches 226 cm |
| Weight | 5547 to 6415 pounds |
| Front tire | 7.50-16 |
| Rear tire | 13.6-36 |
 Full dimensions and tires ... | |
| Ford 5030 attachments | |
| front-end loader | |
 Attachment details ... |
| 5030 Serial Numbers | |
| Location: | Serial number decal inside the hood panel. |
| 1992 | BD08911 |
| 1993 | BD29691 |
| 1994 | BD64266 |
| 1995 | BD87933 |
| 1996 | 021901B |
| 1997 | 056392B |
| 1998 | 083357B |
| 1999 | 111612B |
FAQ: How to read a serial number table. | |
| Electrical | |
| Ground | negative |
| Charging system | alternator |
| ROPS Charging amps | 55 (early) |
| ROPS Charging amps | 45 (late) |
| Cab Charging amps | 70 |
| Battery CCA | 800 |
| Battery volts | 12 |
| References | |
 | |
| Front-end Loaders published in 1995, by New Holland | |
| 5030 - 62 PTO hp Tractor published in 1992, by Ford | |
| Ford 30 Series published in 1995, by New Holland |
