Ford 5030 Tests
|
|
| OCED Tractor Test 1704 | |||
| |||
| OCED Tractor Test 1704 | |
| Diesel 16-speed 4WD October 4 - 25, 1995 Link: OCED Tractor Test 1704 file | |
| PTO performance | |
| Power at rated engine speed | 63.56 hp 47.4 kW |

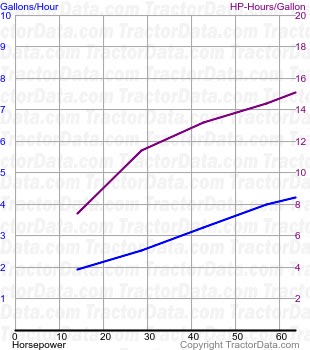

| Fuel use | 4.2 gal/hour 15.9 l/hour |
| Power at rated PTO speed | 56.17 hp 41.9 kW |
| Fuel use | 3.6 gal/hour 13.6 l/hour |
| Drawbar performance | |
| Max power | 53.84 hp 40.1 kW |
| Fuel use | 4.2 gal/hour 15.9 l/hour |
| Gear 6L used for power test. | |
| Max pull | 7,762 lbs 3520 kg |
| Gear 3L used for pull test. | |
