Long 560
|
|
| Production | |
| Distributor | Long |
| Manufacturer | UTB/Universal |
| Utility tractor | |
| Built in Brasov, Romania | |
| Variants | |
| 560DT | 4WD |
| Long 560 Engine | |
| UTB/Universal 3.1L 4-cyl diesel | |
 Engine details ... |
| Long 560 Transmission | |
| 8-speed partially synchronized | |
 Transmission details ... |
| Long 560 Power | |
| Engine | 60 hp 44.7 kW |
| Drawbar (tested) | 46.73 hp 34.8 kW |
| PTO (tested) | 53.61 hp 40.0 kW |
 Performance test details ... | |
| Mechanical | |
| Two- or four-wheel drive | |
| Differential lock | pedal with auto-disengagement |
| Steering | manual |
| power optional | |
| Independent contracting band brakes | |
| Open operator station. | |

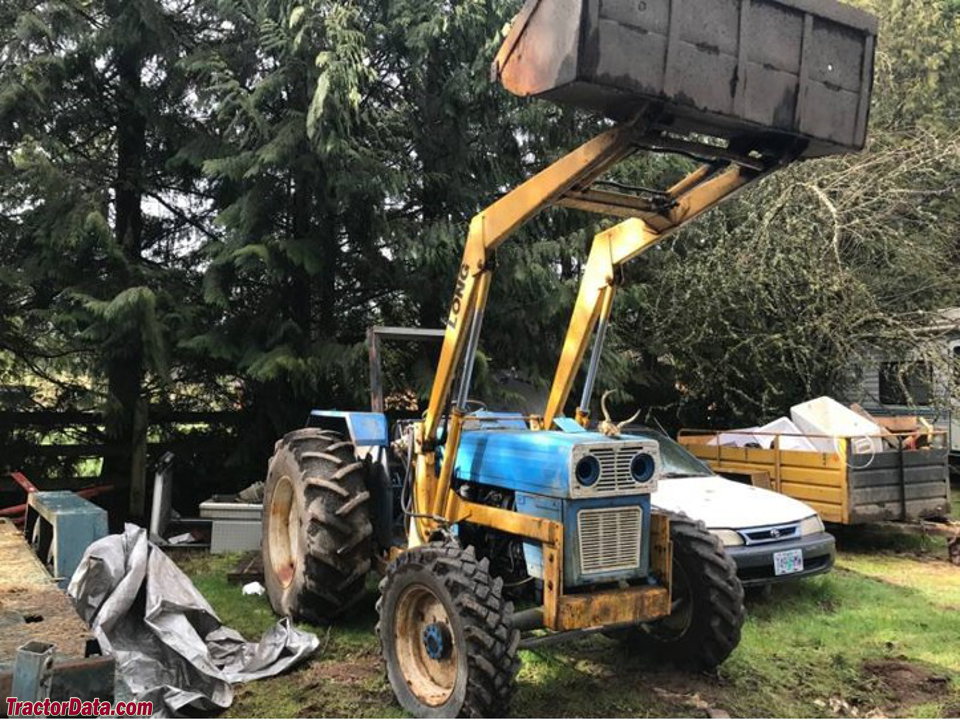

| Photos | |
 | |
 Long 560 photos... | |
| Capacity | |
| Fuel | 14.25 gal 53.9 L |
| Hydraulic system | 4.5 gal 17.0 L |
| Hydraulics | |
| Capacity | 4.5 gal 17.0 L |
| Pressure | 2133 psi 147.1 bar |
| Total flow | 5.75 gpm 21.8 lpm |
| Tractor hitch | |
| Rear Type | I |
| Rear lift | 2,660 lbs 1206 kg |
| Power Take-off (PTO) | |
| Rear PTO Type | 540 |
| Dimensions & Tires | |
| Wheelbase | 81.25 inches 206 cm |
| Weight | 4,570 lbs 2072 kg |
| Front tire | 7.50-16 |
| Rear tire | 14.9-28 |
 Full dimensions and tires ... | |
| References | |
 | |
| 560 Tractor published in 1975, by Long |
