Tractors > Long > 560

Long 560 Transmission



Long 560 tractor photo
1975 - ????
Utility tractor
UTB/Universal built
Series map:
560
60.0hp
Transmission
Typepartially synchronized
Gears8 forward and 2 reverse
Oil capacity18 qts
17.0 L
Shifts between gears 3-4 and 7-8 are synchronized.

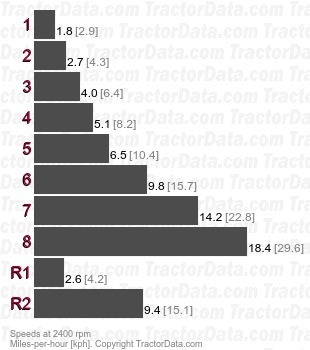

Speeds
With 14.9x28 rear tires
560 partially synchronized speeds

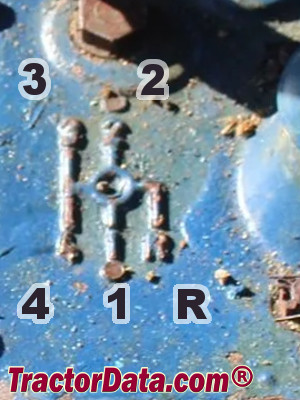

Shift Pattern
Long 560 transmission controls
