Tractors > Ford > 4110

Ford 4110



Ford 4110 tractor photo
1982 - 1983
10 Utility Series
Utility tractor
Series map:
3610
4110
47.5hp
54.0hp
Production
ManufacturerFord
Utility tractor
Ford 4110 Engine
Ford 3.3L 3-cyl diesel
Engine details ...
Ford 4110 Transmissions
8-speed
8-speed synchromesh
Transmission details ...
Ford 4110 Power
Engine (gross)56.8 hp
42.4 kW
Engine54 hp
40.3 kW
PTO (claimed)48 hp
35.8 kW
Drawbar (tested)40.60 hp
30.3 kW
PTO (tested)49.26 hp
36.7 kW
Performance test details ...
Mechanical
Two-wheel drive
Steeringpower assist
Wet disc brakes
Two-post ROPS
Photos

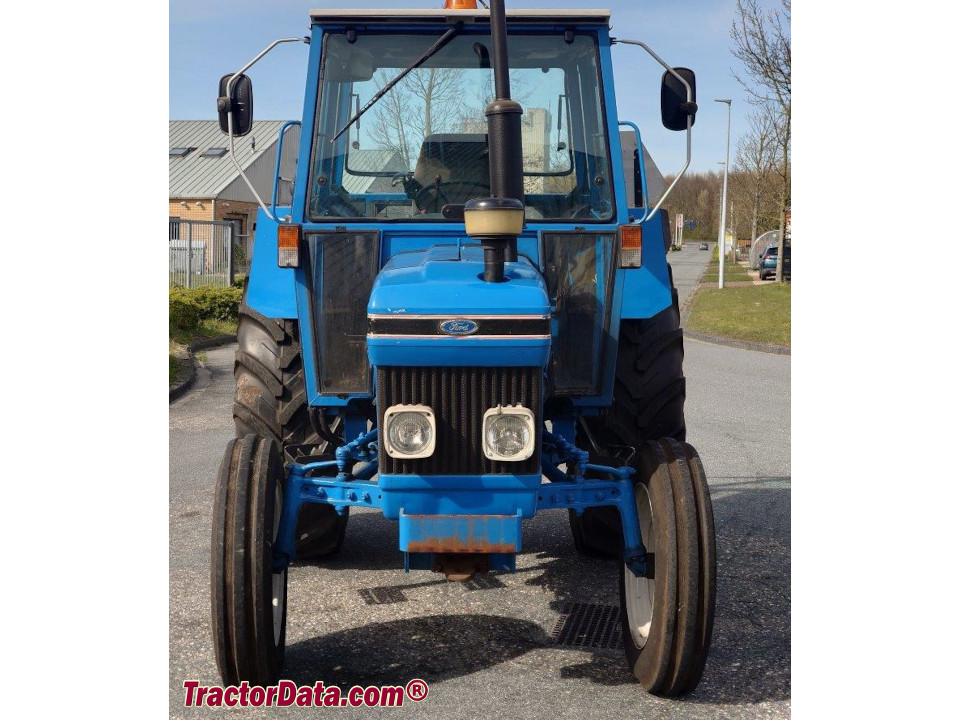

Ford 4110 Series II utility tractor.
Ford 4110 photos...
Capacity
Fuel13 gal
49.2 L
Rear axle48.3 qts
45.7 L
Hydraulics
Typelive
Pressure2500 psi
172.4 bar
Pump flow8.5 gpm
32.2 lpm
Steering flow3.6 gpm
13.6 lpm
Tractor hitch
Rear TypeI
Rear lift3,080 lbs
1397 kg
Power Take-off (PTO)
Rear PTOindependent
Rear PTO Type540
Dimensions & Tires
Wheelbase77.3 inches
196 cm
Weight4340 to 4715 pounds
Front tire7.50-15
Rear tire16.9-24
Full dimensions and tires ...
Ford 4110 attachments
front-end loader
Attachment details ...
4110 Serial Numbers
1982C68200
1983C694500

FAQ: How to read a serial number table.
Electrical
Groundnegative
Charging systemalternator
Charging amps32
Battery volts12
Battery AH128
References
4110 references literature
Farm Loaders published in 1982, by Ford
34-52 hp Tractors published in 1982, by Ford
If you're looking for tractor quality, look to Ford published in 1982
Salesman's Reference published in 1981, by Ford
10 Series Tractors Repair Manual (SE 3870) published in 1989
4110 - 4610 published in 1982, by Ford
