Ford 4110 Tests


Ford 4110 tractor photo
1982 - 1983
10 Utility Series
Utility tractor
Series map:
3610
4110
47.5hp
54.0hp
Tractor Tests
NTTL 1424: diesel 8x2
NTTL 1425: diesel 8x4
Nebraska Tractor Test 1424

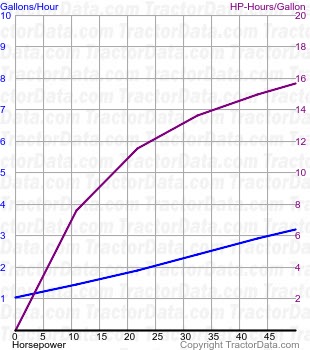

4110 fuel use from test 1424
Nebraska Tractor Test 1424
Diesel 8x2
March 18 - April 8, 1982
Link: Nebraska Tractor Test 1424 file
PTO performance
Power at rated engine speed48.22 hp
36.0 kW
Fuel use3.1 gal/hour
11.7 l/hour
Power at rated PTO speed42.65 hp
31.8 kW
Fuel use2.6 gal/hour
9.8 l/hour
Drawbar performance
Max power40.60 hp
30.3 kW
Fuel use3.1 gal/hour
11.7 l/hour
Max pull5,681 lbs
2576 kg
Gear 2 used for pull test.
Nebraska Tractor Test 1425

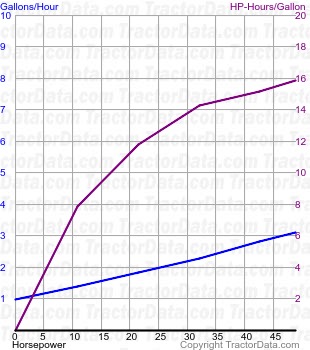

4110 fuel use from test 1425
Nebraska Tractor Test 1425
Diesel 8x4
April 23 - May 14, 1982
Link: Nebraska Tractor Test 1425 file
PTO performance
Power at rated engine speed49.26 hp
36.7 kW
Fuel use3.2 gal/hour
12.1 l/hour
Power at rated PTO speed44.06 hp
32.9 kW
Fuel use2.7 gal/hour
10.2 l/hour
Drawbar performance
Max power39.80 hp
29.7 kW
Fuel use3.1 gal/hour
11.7 l/hour
Max pull5,691 lbs
2581 kg
Gear 2 used for pull test.
