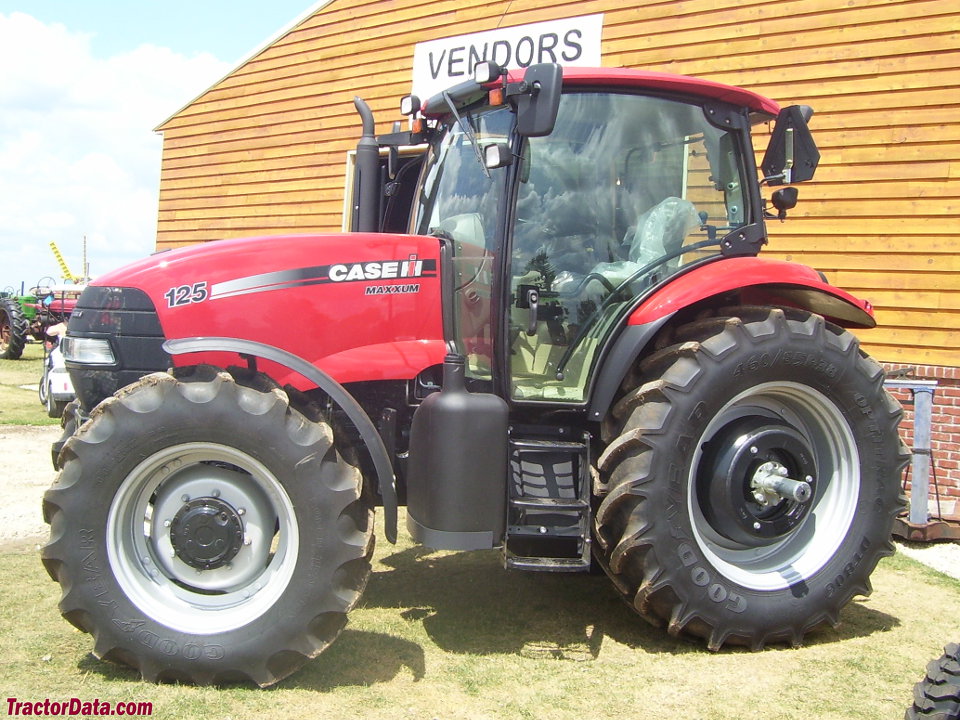

CaseIH Maxxum 125
|
|
| Production | |
| Manufacturer | CaseIH |
| Row-Crop tractor | |
| Built in Basildon, England | |
| Original price | $97,541 (2011 PRO) |
| During official testing, the Maxxum 125 was not capable of the advertised three-point lift. Actual lift was 6,700 pounds or 8,070 with two assist cylinders. Actual lift for the 125 PRO was 9,420 or 11,355 with 90mm lift cylinders. | |
| Variants | |
| 125 PRO | 4WD, deluxe cab, PFC hydraulics |
| CaseIH Maxxum 125 Engine | |
| FPT 6.7L 6-cyl diesel | |
| Fuel tank | 66 gal 249.8 L |
 Engine details ... | |
| CaseIH Maxxum 125 Transmissions | |
| 12-speed mechanical shuttle | |
| 24-speed partial power shift | |
| 16-speed partial power shift | |
| 17-speed partial power shift | |
 Transmission details ... |
| CaseIH Maxxum 125 Power | |
| Engine | 125 hp 93.2 kW |
| PTO (claimed) | 105 hp 78.3 kW |
| Drawbar (tested) | 90.9 hp 67.8 kW |
| PTO (tested) | 122.6 hp 91.4 kW |
 Performance test details ... | |
| Mechanical | |
| Drive | 4x2 2WD |
| 4x4 MFWD 4WD (optional) | |
| Steering | hydrostatic power |
| Hydraulic wet disc brakes | |
| Trailer brakes | hydraulic optional |
| Two post ROPS. Cab optional. Deluxe cab standard on 125 PRO model | |
| Photos | |
 | |
 CaseIH Maxxum 125 photos... | |
| Hydraulics | |
| Type | open center |
| closed center PFC (125 PRO) | |
| Valves | 2 to 4 |
| Pump flow | 16.6 gpm 62.8 lpm |
| 26.5 gpm (PFC) 100.3 lpm | |
| Total flow | 27.1 gpm 102.6 lpm |
| 37 gpm (PFC) 140.0 lpm | |
| Steering flow | 10.5 gpm 39.7 lpm |
| Tractor hitch | |
| Rear Type | 2/3N |
| Control | mechanical draft control |
| electronic draft control (125 PRO) | |
| Rear lift | 7,509 lbs 3406 kg |
| 8,813 lbs (optional) 3997 kg | |
| 9,620 lbs (125 PRO) 4363 kg | |
| 12,185 lbs (125 PRO optional) 5527 kg | |
| Power Take-off (PTO) | |
| Rear PTO | independent |
| Clutch | electro-hydraulic wet disc |
| Rear PTO Type | 540/1000 |
| Dimensions & Tires | |
| Wheelbase | 104.4 inches (2WD) 265 cm |
| 104.7 inches (4WD) 265 cm | |
| Weight | 9466 to 12270 pounds |
| Front tire | 11.00-16 |
| Rear tire | 18.4R38 (2WD) |
 Full dimensions and tires ... | |
| CaseIH Maxxum 125 attachments | |
| front-end loader | |
 Attachment details ... |
| Electrical | |
| Ground | negative |
| Charging system | alternator |
| Charging amps | 120 |
| Battery CCA | 960 |
| Battery volts | 12 |
