Challenger MT265B
|
|
| Production | |
| Distributor | Challenger (a part of AGCO) |
| Manufacturer | Iseki |
| Compact Utility tractor | |
| Built in Matsuyama, Japan | |
| Variants | |
| 1533 | similar Massey Ferguson model |
| Challenger MT265B Engine | |
| Iseki 1.5L 3-cyl diesel | |
| Fuel tank | 10.6 gal 40.1 L |
 Engine details ... | |
| Challenger MT265B Transmissions | |
| hydrostatic | |
| 8-speed | |
| 12-speed partially synchronized with power shuttle | |
 Transmission details ... |
| Challenger MT265B Power | |
| Engine (gross) | 33.0 hp 24.6 kW |
| Engine (net) | 32 hp 23.9 kW |
| Gear PTO (claimed) | 26.0 hp 19.4 kW |
| Hydro PTO (claimed) | 24.5 hp 18.3 kW |
| Mechanical | |
| Four-wheel drive | |
| Final drives | spur gear |
| Differential lock | mechanical rear |
| Power steering | |
| Wet disc brakes | |
| Two-post foldable ROPS | |
| Photos | |
 | |

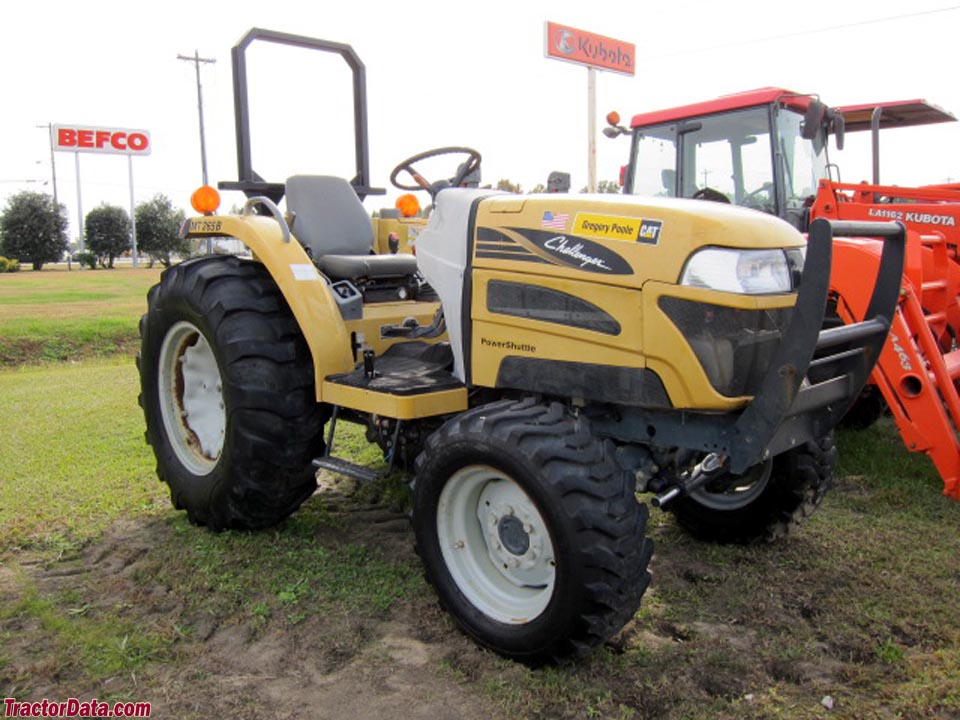

 Challenger MT265B photos... | |
| Hydraulics | |
| Type | open center |
| Pressure | 2276 psi 156.9 bar |
| Rear valves | 2 OptOptional |
| Mid valves | 2 OptOptional |
| Pump flow | 8.3 gpm 31.4 lpm |
| Total flow | 12.7 gpm (sync shuttle) 48.1 lpm |
| 13.7 gpm (power shuttle/hydro) 51.9 lpm | |
| Steering flow | 4.4 gpm (sync shuttle) 16.7 lpm |
| 5.4 gpm (power shuttle/hydro) 20.4 lpm | |
| Steering press. | 2276 psi 156.9 bar |
| Tractor hitch | |
| Rear Type | I |
| Control | position and response control |
| optional top-link draft control | |
| Rear lift (at ends) | 2800 lbs 1270 kg |
| Rear lift (at 24"/610mm) | 2535 lbs 1149 kg |
| Rear Arms | fixed link ends ((sync shuttle) |
| telescopic link ends (power shuttle/hydro) | |
| Power Take-off (PTO) | |
| Rear PTO | independent |
| Clutch | electro-hydraulic wet disc |
| Rear PTO Type | 540 (1.375) |
| Mid PTO | independent OptOptional |
| Mid PTO Type | 2000 (1.00) |
| Dimensions & Tires | |
| Wheelbase | 69.7 inches 177 cm |
| Weight | 3136 lbs 1422 kg |
| Front tire | 8-16 |
| Rear tire | 12.4-24 |
 Full dimensions and tires ... | |
| Challenger MT265B attachments | |
| front-end loader | |
| backhoe | |
 Attachment details ... |
| Electrical | |
| Ground | negative |
| Charging system | alternator |
| Charging amps | 40 |
| Battery CCA | 630 |
| Battery volts | 12 |
| References | |
 | |
| MT200B Series published in 2005, by AGCO |
