Transmissions overview | |
hydrostatic | |
8-speed | |
12-speed partially synchronized with power shuttle |
Transmission | |
Type: | hydrostatic |
Gears: | infinite (3-range) forward and reverse |
Oil capacity: | 32.8 qts 31.0 L |

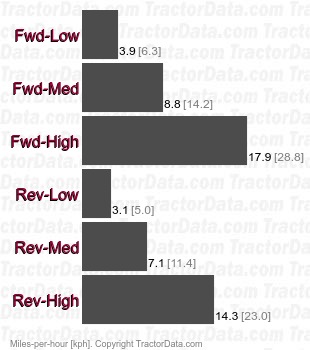

Speeds | |
With 12.4-24 R1 rear tires. | |
Transmission | |
Transmission: | SynchroShuttle |
Gears: | 8 forward and reverse |
Clutch: | mechanical dry disc |
Oil capacity: | 32.8 qts 31.0 L |
Four non-synchronized gears in two non-synchronized ranges, with synchronized shuttle shift. |

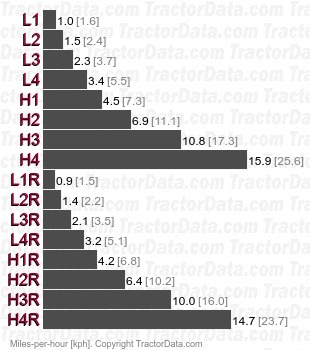

Speeds | |
With 12.4-24 R1 rear tires. | |
Transmission | |
Transmission: | PowerShuttle |
Type: | partially synchronized with power shuttle |
Gears: | 12 forward and reverse |
Clutch: | dry main, wet shuttle |
Oil capacity: | 32.8 qts 31.0 L |
Three ranges with four gears each. Transmission can be shifted from forward to reverse on the go, without the clutch. In-range gear changes can be made on the go with the clutch. |

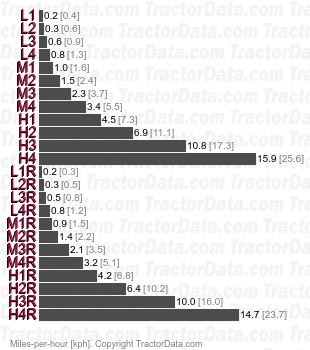

Speeds | |
With 12.4-24 R1 rear tires. | |
