Challenger MT295
| | 2003 - 2005 |
| MT200 Series | | Compact Utility tractor | | Iseki built |
|
| Production |
| Distributor: | Challenger (a part of AGCO)
|
| Manufacturer: | Iseki
|
| Type: | Compact Utility tractor
|
| Factory: | Matsuyama, Japan
|
| Challenger MT295 Power |
| Engine (gross): | 44.2 hp
33.0 kW
|
| Gear PTO (claimed): | 37.0 hp
27.6 kW
|
| Hydro PTO (claimed): | 36 hp
26.8 kW
|
| Mechanical |
| Chassis: | 4x4 MFWD 4WD
|
| Differential lock: | mechanical rear
|
| Steering: | power
|
| Brakes: | wet disc
|
| Cab: | Two-post folding ROPS.
|
| Transmissions: | 16-speed power shuttle
|
| | hydrostatic
|
 Transmission details ... |
| Hydraulics |
| Type: | open center
|
| Pressure: | 2275 psi
156.9 bar
|
| Pump flow: | 7.4 gpm
28.0 lpm
|
| Total flow: | 12.6 gpm
47.7 lpm
|
| Steering flow: | 5.2 gpm
19.7 lpm
|
| Tractor hitch |
| Rear Type: | I
|
| Control: | position and draft control
|
| Rear lift (at ends): | 3086 lbs
1399 kg
|
| Rear lift (at 24"/610mm): | 2600 lbs
1179 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Clutch: | wet disc
|
| Rear RPM: | 540 (1.375)
|
| Mid PTO: | independent*Optional, available only with hydrostatic transmission.
|
| Mid RPM: | 2000
|
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Battery volts: | 12
|
| Page information |
| Last update: | June 29, 2022
|
| Copyright: | Copyright 2022 TractorData LLC
|
| Contact: | Peter@TractorData.com
|
©2000-2022 - TractorData.com®. Notice: Every attempt is made to ensure the data listed
is accurate. However, differences between sources, incomplete listings,
errors, and data entry mistakes do occur.
Consult official
literature from the manufacturer before attempting any service or repair.
Engine details ...

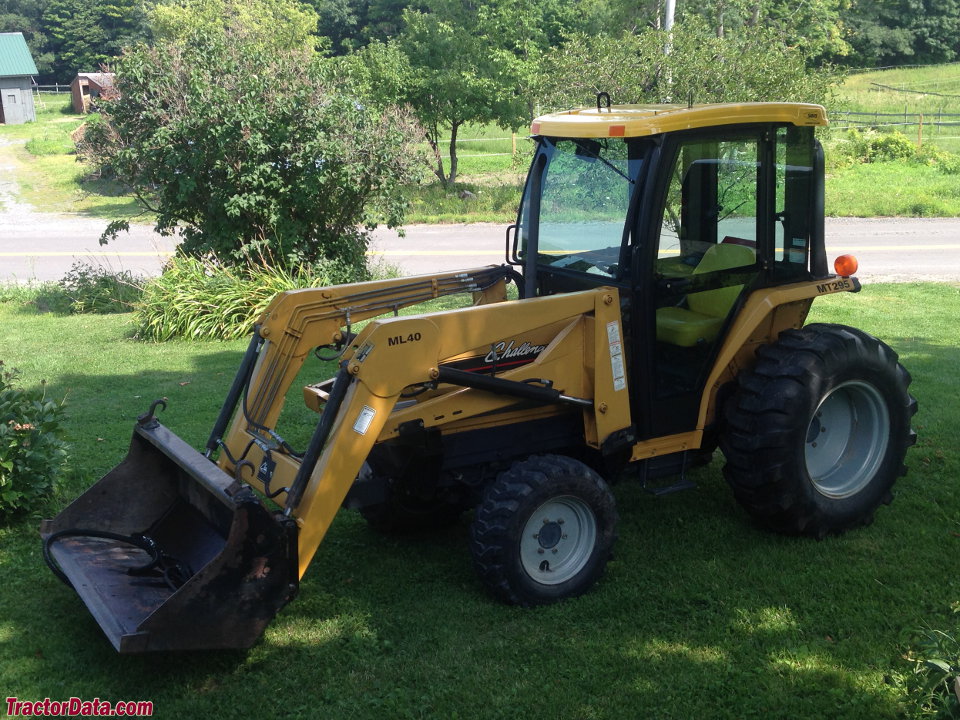

Challenger MT295 photos...
