New Holland T6030 Elite

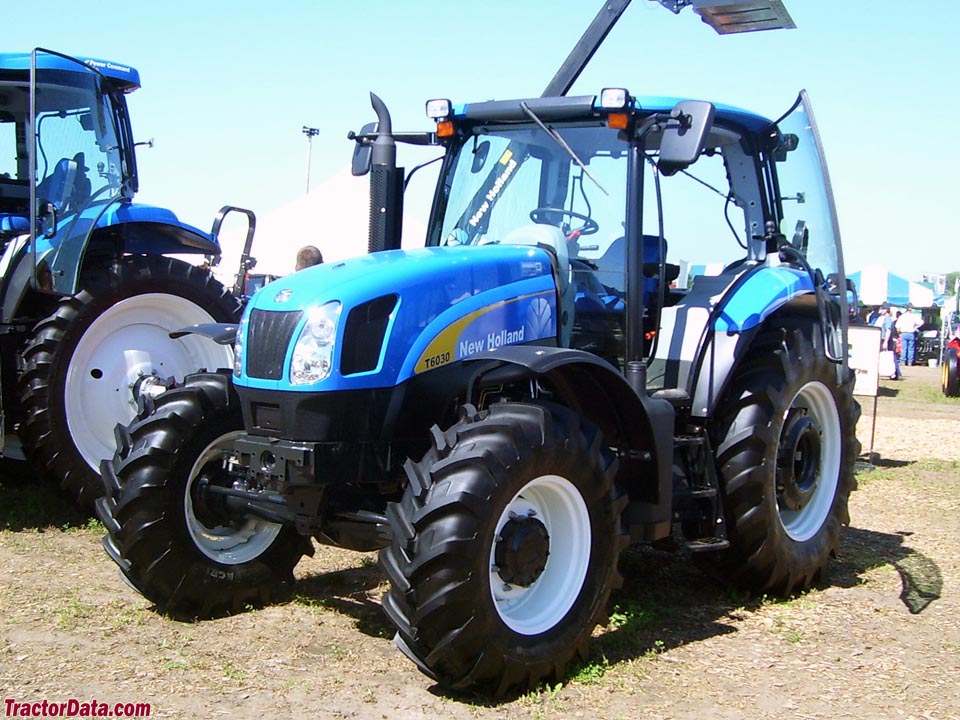

New Holland T6030 Elite tractor photo
2007 - 2012
T6000 Series
Row-Crop tractor
Series:T6020 EliteT6030 EliteT6040 Elite
Manufacturer:New Holland
Type:Row-Crop tractor
Factory:Basildon, England
T6030 Delta:economy
T6030 Plus:mid-level
T6030 Elite:premium
New Holland T6030 Elite Power
Engine (gross):115 hp
85.8 kW
Engine (max):126 hp
94.0 kW
PTO (claimed):95 hp
70.8 kW
Drawbar (tested):79.1 hp
59.0 kW
PTO (tested):114.3 hp
85.2 kW
power test details ...
Chassis:4x4 MFWD 4WD
Steering:hydrostatic power
Brakes:hydraulic wet disc
Cab:Horizon cab standard with air-conditioning. Optional deluxe cab with automatic temperature control and air-ride seat. Optional Comfort Ride cab suspension. Programmable headland management system.
Transmissions:16-speed partial power shift
Transmission details ...
Fuel:79.3 gal
300.2 L
Hydraulic system:18.5 gal
70.0 L
Type:closed center load sensing
Capacity:18.5 gal
70.0 L
Valves:2 to 4
Pump flow:26.5 gpm
100.3 lpm
Total flow:43.6 gpm
165.0 lpm
Steering flow:17.1 gpm
64.7 lpm
Tractor hitch
Rear Type:2/3N
Control:electronic lower-link draft control
Rear lift:12,185 lbs
5527 kg
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540/1000 (1.375)
Dimensions & Tires
Wheelbase:104.4 inches
265 cm
 95.3 inches
242 cm (Terraglide axle)
 99.2 inches
251 cm (SuperSteer axle)
Weight:11836 to 12135 pounds
Full dimensions and tires ...
Charging system:alternator
Charging amps:120
Charging volts:12
Battery CCA:1300
Battery volts:12
