John Deere 4710 Transmission


John Deere 4710 tractor photo
2003 - 2004
4000 Ten Compact Series
Compact Utility tractor
4700
Series:46104710
4520
Transmissions overview
12-speed power shuttle
hydrostatic
Transmission
Transmission:PowrReverser
Type:power shuttle
Gears:12 forward and reverse
Oil capacity:38.8 qts
36.7 L
The PowrReverser is operated with a range shift lever, gear shift lever, and reverser lever. The tractor must be stopped, and clutch used, to change ranges. Gear shifts may be made while in motion using the clutch. A clutchless power shift can be made between forward and reverse using the reverser lever.
Speeds
With 13.6-28 rear tires.
4710 PowrReverser power shuttle speeds
Transmission
Transmission:eHydro
Type:hydrostatic
Gears:infinite forward and reverse
Oil capacity:36.8 qts
34.8 L
The eHydro is operated via a three-position range shift lever plus forward and reverse pedals. The tractor must be stopped to change range.
Speeds
With 13.6-28 rear tires.

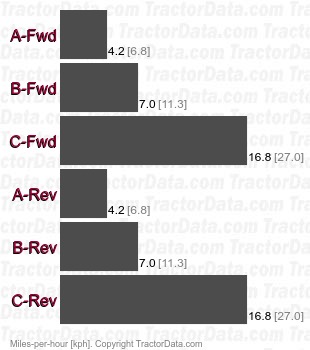

4710 eHydro hydrostatic speeds
