John Deere 9430T Tests

John Deere 9430T tractor photo
2007 - 2011
9030 Series
Agricultural Crawler tractor
OCED Tractor Test 1943

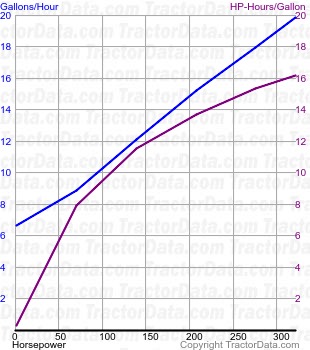

9430T fuel use from test 619
OCED Tractor Test 1943
Diesel 18-speed crawler
October 1 - 14, 2008
Link: OCED Tractor Test 1943 file
PTO performance
Max power:367.82 hp
274.3 kW
Fuel use:21.8 gal/hour
82.5 l/hour
Power at rated engine speed:320.78 hp
239.2 kW
Fuel use:19.9 gal/hour
75.3 l/hour
Power at rated PTO speed:365.51 hp
272.6 kW
Fuel use:21.7 gal/hour
82.1 l/hour
Drawbar performance
Max power:328.03 hp
244.6 kW
Fuel use:21.8 gal/hour
82.5 l/hour
Gear 7 used for power test.
Max pull:45,384 lbs
20586 kg
Gear 1 used for pull test.
