John Deere 9430T Engine

John Deere 9430T tractor photo
2007 - 2011
9030 Series
Agricultural Crawler tractor
Engine Detail
John Deere PowerTech Plus
turbocharged aftercooled diesel
liquid-cooled inline
Displacement:823.8 ci
13.5 L
Bore/Stroke:5.197x6.496 inches
132 x 165 mm
Power:425 hp
316.9 kW
Rated Power (EC 97/98):439 hp
327.4 kW
Fuel system:electronic injection
Cooling system:variable ratio fan
Air cleaner:dual paper elements
Rated RPM:2100
Starter volts:12
Coolant capacity:56 qts
53.0 L
Engine Oil

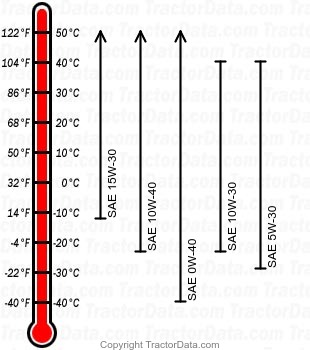

9430T diesel engine oil chart
Oil capacity:44 qts
41.6 L
