John Deere 9420T Tests


John Deere 9420T tractor photo
2002 - 2007
9020 Series
Agricultural Crawler tractor
Series map:
9320T
9420T
9520T
375.0hp
425.0hp
450.0hp
OCED Tractor Test 1791

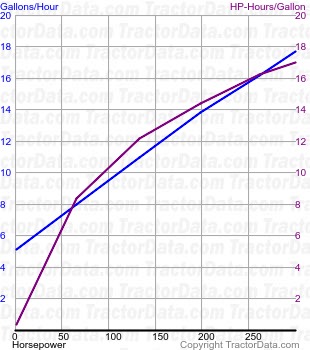

9420T fuel use from test 353
OCED Tractor Test 1791
Diesel 24-speed crawler
March 27 - April 13, 2001
Link: OCED Tractor Test 1791 file
PTO performance
Max power346.53 hp
258.4 kW
Fuel use18.8 gal/hour
71.2 l/hour
Power at rated engine speed299.66 hp
223.5 kW
Fuel use17.7 gal/hour
67.0 l/hour
Power at rated PTO speed331.95 hp
247.5 kW
Fuel use17.9 gal/hour
67.8 l/hour
Drawbar performance
Max power323.43 hp
241.2 kW
Fuel use20.1 gal/hour
76.1 l/hour
Max pull42,421 lbs
19242 kg
Gear 1 used for pull test.
