John Deere 9530T Engine


John Deere 9530T tractor photo
2007 - 2011
9030 Series
Agricultural Crawler tractor
9520T
Series:9430T9530T9630T
9510RT

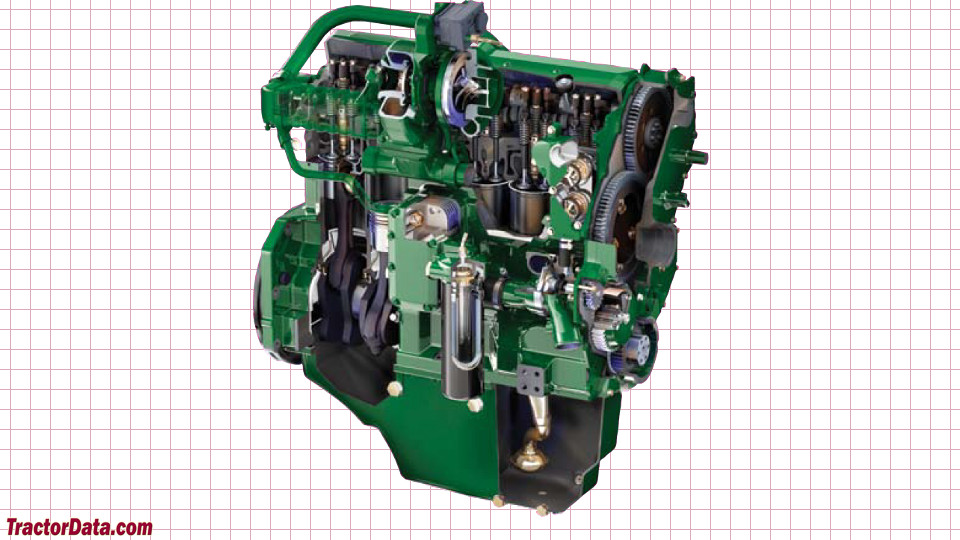

Engine Detail
John Deere PowerTech Plus
turbocharged aftercooled diesel
6-cylinder
liquid-cooled inline
Displacement:823.8 ci
13.5 L
Bore/Stroke:5.197x6.496 inches
132 x 165 mm
Power:475 hp
354.2 kW
Rated Power (EC 97/98):491 hp
366.1 kW
Fuel system:electronic injection
Cooling system:variable ratio fan
Air cleaner:dual paper elements
Compression:16:1
Rated RPM:2100
Starter volts:12
Coolant capacity:56 qts
53.0 L
Engine Oil

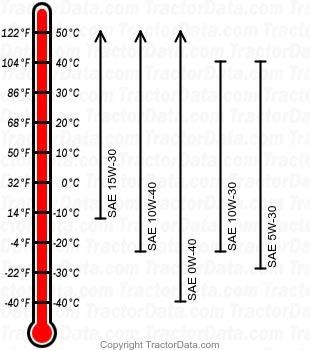

9530T diesel engine oil chart
Oil capacity:63.2 qts
59.8 L
