New Holland TC45A

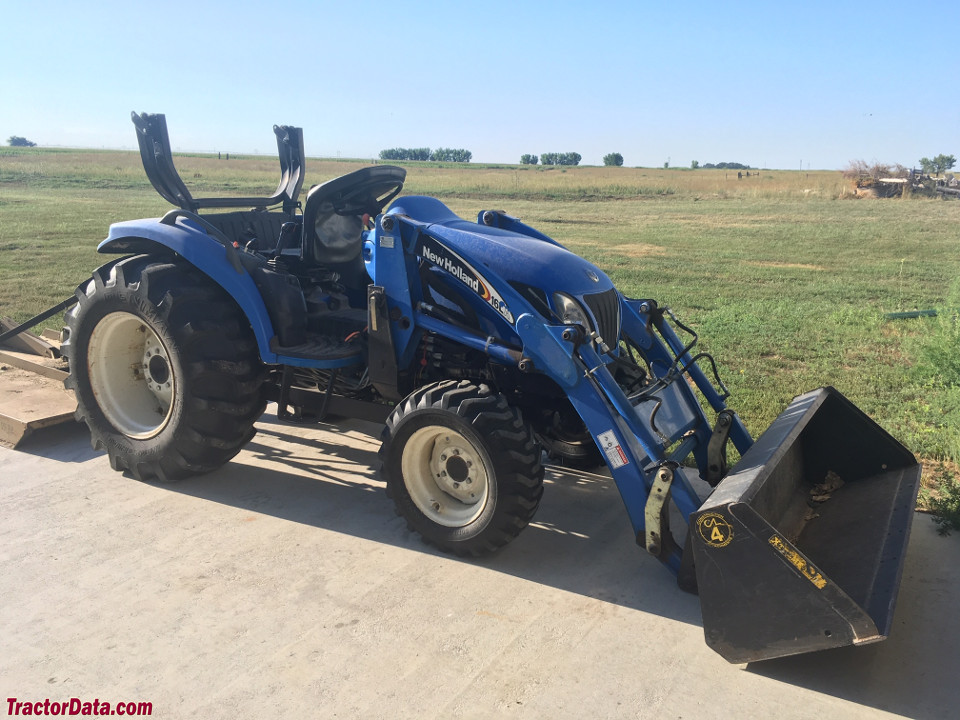

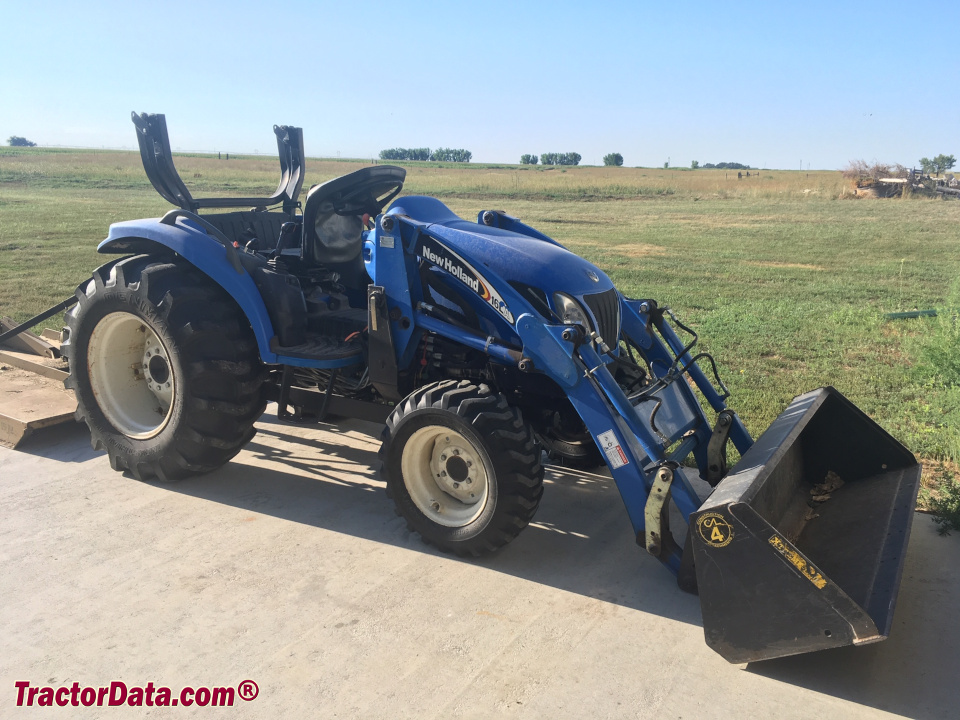

New Holland TC45A tractor photo
2003 - 2008
Boomer TC-A Series
Compact Utility tractor
Series map:
TC40A
TC45A
TC48DA
40.0hp
45.0hp
48.0hp
Production
ManufacturerNew Holland
Compact Utility tractor
Variants
TC45Abase model
TC45DAdeluxe model
New Holland TC45A Transmissions
12-speed synchronized shuttle
hydrostatic
Transmission details ...
New Holland TC45A Power
Engine (gross)45 hp
33.6 kW
TC45A PTO (claimed)39.6 hp
29.5 kW
TC45DA PTO (claimed)38.7 hp
28.9 kW
Mechanical
Two- or four-wheel drive
Differential lockmechanical rear
Power steering
Wet disc brakes
Two-post folding ROPS.
Capacity
Fuel13 gal
49.2 L
Steering1.5 qts
1.4 L
Hydraulics
Typeopen center
Pressure2500 psi
172.4 bar
Rear valves3 OptOptional
Mid valves2 OptOptional
Pump flow9.8 gpm
37.1 lpm
Steering flow5.13 gpm
19.4 lpm
Steering cap.1.5 qts
1.4 L
Tractor hitch
Rear TypeI
Controlposition with optional top-link draft control
Rear lift (at 24"/610mm)2330 lbs
1056 kg
Power Take-off (PTO)
Rear PTOindependent
Rear RPM540 (1.375)
Engine RPM540@2400
Dimensions & Tires
4WD Wheelbase73.5 inches
186 cm
SuperSteer Wheelbase81 inches
205 cm
Weight2949 to 3118 pounds
Front tire7x16
Rear tire13.6x24
Full dimensions and tires ...
New Holland TC45A attachments
84" mid-mount mower deck
snowblower
blade
front-end loader
backhoe
Attachment details ...
TC45A Serial Numbers
Location:Serial number plate on the left side of the transmission housing.
Electrical
Groundnegative
Charging systemalternator
Charging amps40
Battery CCA600
Battery volts12
References
TC45A references literature
BOOMER Tractor Implements, Attachments and Accessories published in 2005, by New Holland
BOOMER 18 To 55 HP Tractors published in 2005, by New Holland
Operator's Manual TC35DA - TC40DA - TC45DA (87300515) published in 2003
