J.I. Case 885
| | 1976 - ???? |
| Utility tractor |
|
Series map:
885
990
47.3hp
58.0hp
Note: the J.I. Case model 885 is the same as the David Brown 885. The following data is from the 885 listing. |
| Production |
| Manufacturer | J.I. Case
|
| Utility tractor |
| Built in Meltham Mills, Huddersfield, England |
| Original price | $7,400 (1976)
|
| J.I. Case 885 Power |
| Engine (net) | 47.3 hp
35.3 kW
|
| Drawbar (claimed) | 37 hp
27.6 kW
|
| PTO (claimed) | 43 hp
32.1 kW
|
| Drawbar (tested) | 36.56 hp
27.3 kW
|
| PTO (tested) | 43.20 hp
32.2 kW
|
 Performance test details ... |
| Mechanical |
| Two-wheel drive |
| Steering | manual
|
| | hydrostatic power (optional)
|
| Differential mechanical drum brakes |
| Cab optional. |
| Capacity |
| Fuel | 12.7 gal
48.1 L
|
| Hydraulic system | 6 gal
22.7 L
|
| Hydraulics |
| Type | open
|
| Capacity | 6 gal
22.7 L
|
| Pressure | 2000 psi
137.9 bar
|
| Total flow | 7.4 gpm
28.0 lpm
|
| Tractor hitch |
| Rear Type | I, II
|
| Rear lift | 1,800 lbs (recommended)
816 kg
|
| | 3,450 lbs (max)
1564 kg
|
| Power Take-off (PTO) |
| Rear PTO Type | 540/1000
|
| 885 Serial Numbers |
| Location: | On the right front side of the frame
|
| 1971 | 620001
|
| 1972 | 620336
|
| 1973 | 624731
|
| 1974 | 630611
|
| 1975 | 634830
|
| 1976 | 11000001
|
| 1977 | 11005148
|
| 1978 | 11011088
|
| 1979 | 11015095
|
| 1980 | 11019389
|
FAQ: How to read a serial number table.
|
| Electrical |
| Charging system | alternator
|
| Battery volts | 12
|
| Battery AH | 86
|

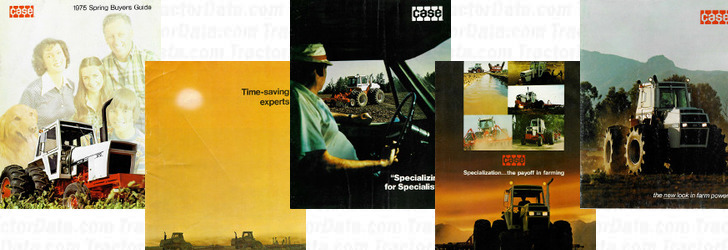

| References |
 |
| 1975 Spring Buyers Guide published by J.I. Case |
| Time-saving experts published in 1975, by J.I. Case |
| "Specializing" for Specialists published in 1978, by J.I. Case |
| Specialization... the payoff in farming published in 1980, by J.I. Case |
| The new look in farm power published in 1981, by J.I. Case |
| Page information |
 |
| Copyright 2024 TractorData.com® |
| TractorData is a family-owned small business located in Minnesota that has been providing reference information on tractors since 1999. |
| Peter Easterlund - owner/author |
| Email: Peter@TractorData.com |
| Updated on July 16, 2022 |
©2000-2024 - TractorData.com®. Notice: Every attempt is made to ensure the data listed
is accurate. However, differences between sources, incomplete listings,
errors, and data entry mistakes do occur.
Consult official
literature from the manufacturer before attempting any service or repair.
Engine details ...
Transmission details ...

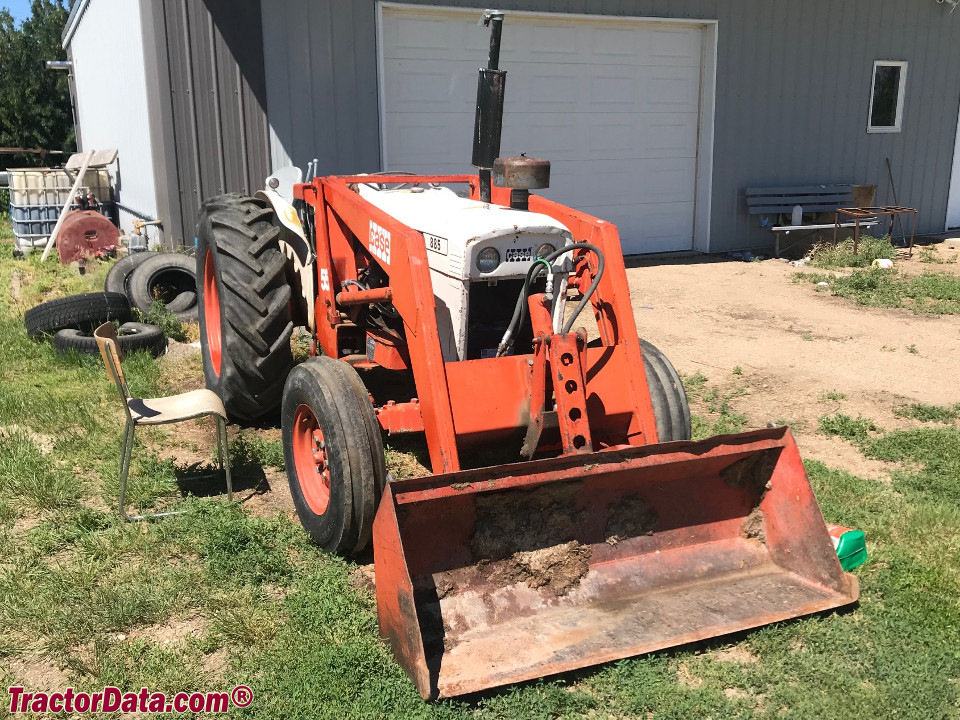

J.I. Case 885 photos...
