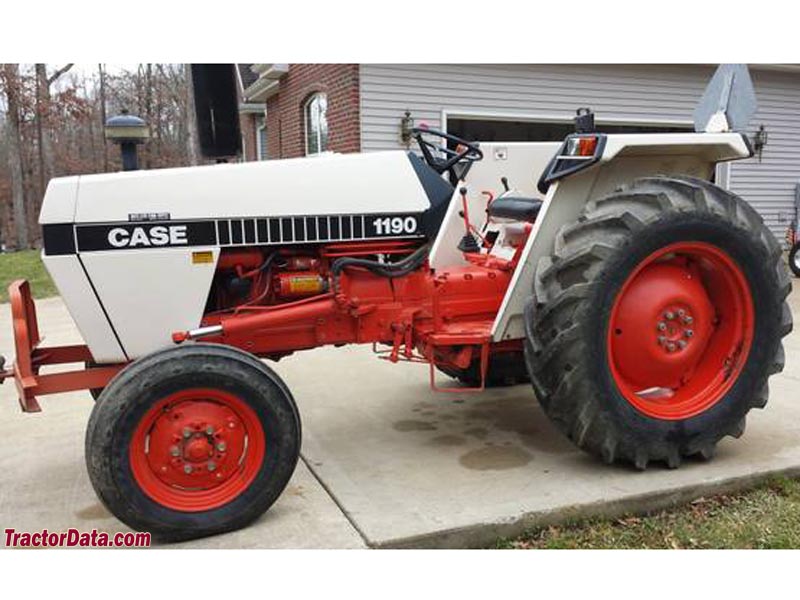

J.I. Case 1190
| | 1980 - 1983 |
| 90 Series | | Utility tractor |
|
| Production |
| Manufacturer: | J.I. Case
|
| Type: | Utility tractor
|
| Factory: | Meltham Mills, Huddersfield, England
|
| Original price: | $17,200 (1983 )
|
| J.I. Case 1190 Power |
| PTO (claimed): | 43 hp
32.1 kW
|
| Drawbar (tested): | 34.65 hp
25.8 kW
|
| PTO (tested): | 43.09 hp
32.1 kW
|
| power test details ... |
| Mechanical |
| Chassis: | 4x2 2WD
|
| Steering: | power
|
| Brakes: | mechanical drum
|
| Cab: | Two-post ROPS.
|
| Transmission: | 12-speed synchromesh
|
 Transmission details ... |
| Capacity |
| Fuel: | 16 gal
60.6 L
|
| Hydraulic system: | 7.2 gal
27.3 L
|
| Hydraulics |
| Type: | open center
|
| Capacity: | 7.2 gal
27.3 L
|
| Valves: | 1 or 2
|
| Pump flow: | 7.25 gpm
27.4 lpm
|
| Tractor hitch |
| Rear Type: | I
|
| Power Take-off (PTO) |
| Rear PTO: | transmission
|
| Rear RPM: | 540
|
| 1190 Serial Numbers |
| Location: | Serial number stamped into the top of the tractor's frame on the right side, next to the engine.
|
| 1980: | 11030101
|
| 1981: | 11031792
|
| 1982: | 11033166
|
| 1983: | 11035592
|
how to read serial numbers...
|
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Charging amps: | 26
|
| Battery volts: | 12
|
