Tractors > John Deere > 3650

John Deere 3650



John Deere 3650 tractor photo
1986 - 1993
3050 Series
Utility tractor
Series map:
3350
3650
74.6kw
85.3kw
Production
ManufacturerJohn Deere
Utility tractor
Built in Mannheim, Baden-Württemberg, Germany
John Deere 3650 Engine
John Deere 5.9L 6-cyl diesel
Engine details ...
John Deere 3650 Transmission
16-speed
Transmission details ...
John Deere 3650 Power
Engine114.4 hp
85.3 kW
PTO (claimed)104.72 hp
78.1 kW
Mechanical
Four-wheel drive
Steeringhydrostatic power
Wet disc brakes
Cab standard with optional air-conditioning.
Photos

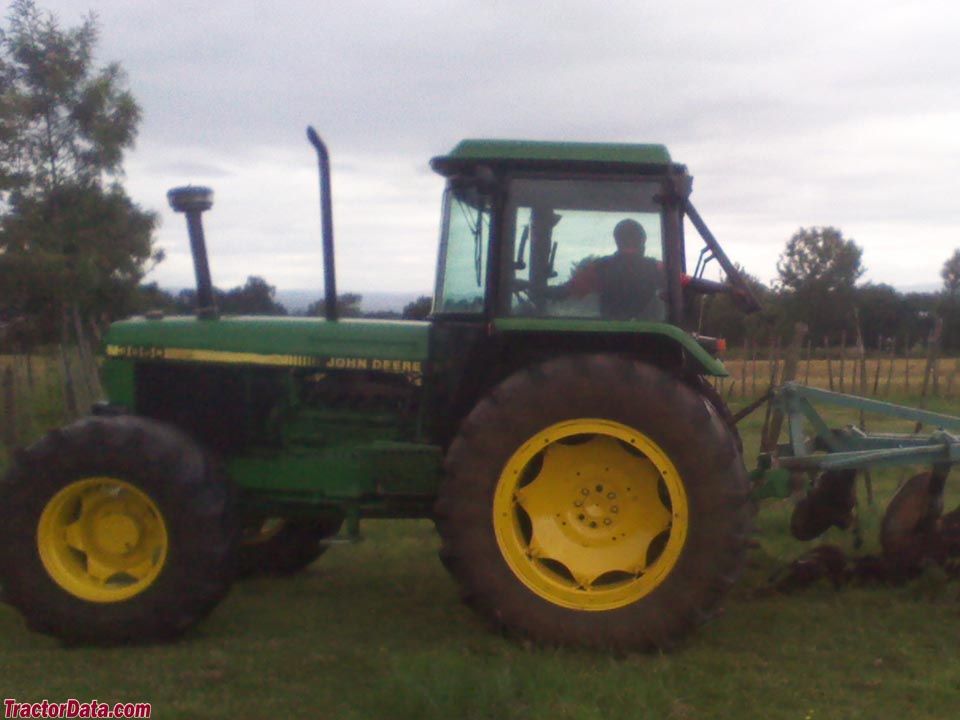

John Deere 3650 utility tractor.
John Deere 3650 photos...
Capacity
Fuel45 gal
170.3 L
Hydraulic system14.53 gal
55.0 L
Hydraulics
Typeclosed center constant pressure
Capacity14.53 gal
55.0 L
Pressure2698 psi
186.0 bar
Total flow11.62 gpm
44.0 lpm
Tractor hitch
Rear TypeIII/II
Rear lift (at ends)11620 lbs
5270 kg
Front HitchII
Front lift (at ends)3594 lbs
1630 kg
 6526 lbsOptOptional
2960 kg
Power Take-off (PTO)
Rear PTOindependent
Clutchhydraulic wet disc
Rear PTO Type540/1000
Engine RPM540@2178
 1000@2172
Front PTOindependent
Clutchhydraulic wet disc
Front PTO Type1000
Engine RPM1000@2172
Dimensions & Tires
Wheelbase101.8 inches
258 cm
Weight13,510 lbs
6128 kg
Front tire16.9x24
Rear tire520/70x38
Full dimensions and tires ...
3650 Serial Number Location

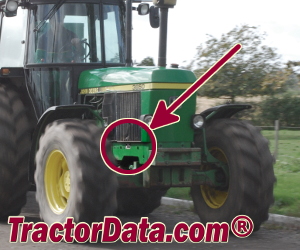

John Deere 3650 serial number location
Serial number plate on the left side of the tractor frame, above the front axle.
Electrical
Groundnegative
Charging amps55
Batteries2
Battery volts12
Battery AH88
References
3650 references literature
3650 Traktor published in 1986, by John Deere
