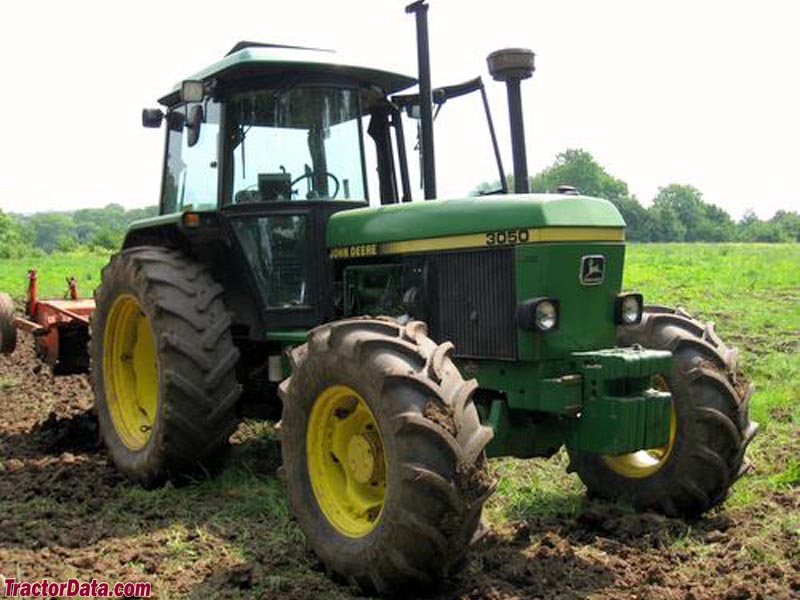

John Deere 3050
|
|
| Production | |
| Manufacturer | John Deere |
| Utility tractor | |
| Built in Mannheim, Baden-Württemberg, Germany | |
| John Deere 3050 Engine | |
| John Deere 5.9L 6-cyl diesel | |
 Engine details ... |
| John Deere 3050 Transmission | |
| 16-speed two-speed power shift | |
 Transmission details ... |
| John Deere 3050 Power | |
| Engine | 90.7 hp 67.6 kW |
| PTO (claimed) | 84.3 hp 62.9 kW |
| Mechanical | |
| Two- or four-wheel drive | |
| Final drives | planetary |
| Differential lock | mechanical rear |
| Power steering | |
| Hydraulic wet disc brakes | |
| SG2 Cab standard with optional air-conditioning. | |
| Photos | |
 | |
 John Deere 3050 photos... | |
| Capacity | |
| Fuel | 32 gal 121.1 L |
| 45.7 gal*With optional 52L tank. 173.0 L | |
| Hydraulic system | 12.94 gal (2WD) 49.0 L |
| 13.74 gal (4WD) 52.0 L | |
| Hydraulics | |
| Type | closed-center constant pressure |
| Capacity | 12.94 gal (2WD) 49.0 L |
| 13.74 gal (4WD) 52.0 L | |
| Pressure | 2698 psi 186.0 bar |
| Total flow | 11.62 gpm 44.0 lpm |
| Tractor hitch | |
| Rear Type | II/IIIN |
| Control | position and draft control |
| 2WD Rear lift (at ends) | 8988 lbs 4076 kg |
| 4WD Rear lift (at ends) | 10800 lbs 4898 kg |
| Front Hitch | II |
| Front lift | 3594 lbs 1630 kg |
| Power Take-off (PTO) | |
| Rear PTO | independent |
| Clutch | hydraulic wet disc |
| Rear PTO Type | 540/1000 |
| Engine RPM | 540@2070 |
| 1000@2172 | |
| Front PTO | independent |
| Clutch | hydraulic wet disc |
| Front PTO Type | 1000 |
| Engine RPM | 1000@2172 |
| Dimensions & Tires | |
| 2WD Wheelbase | 100.4 inches 255 cm |
| 4WD Wheelbase | 101.8 inches 258 cm |
| Weight | 9149 to 10714 pounds |
| Front tire | 11.00x16 |
| Rear tire | 18.4x38 |
 Full dimensions and tires ... | |
| Electrical | |
| Ground | negative |
| Charging amps | 55 |
| Batteries | 2 |
| Battery volts | 12 |
| Battery AH | 88 |
