Tractors > John Deere > 1950

John Deere 1950

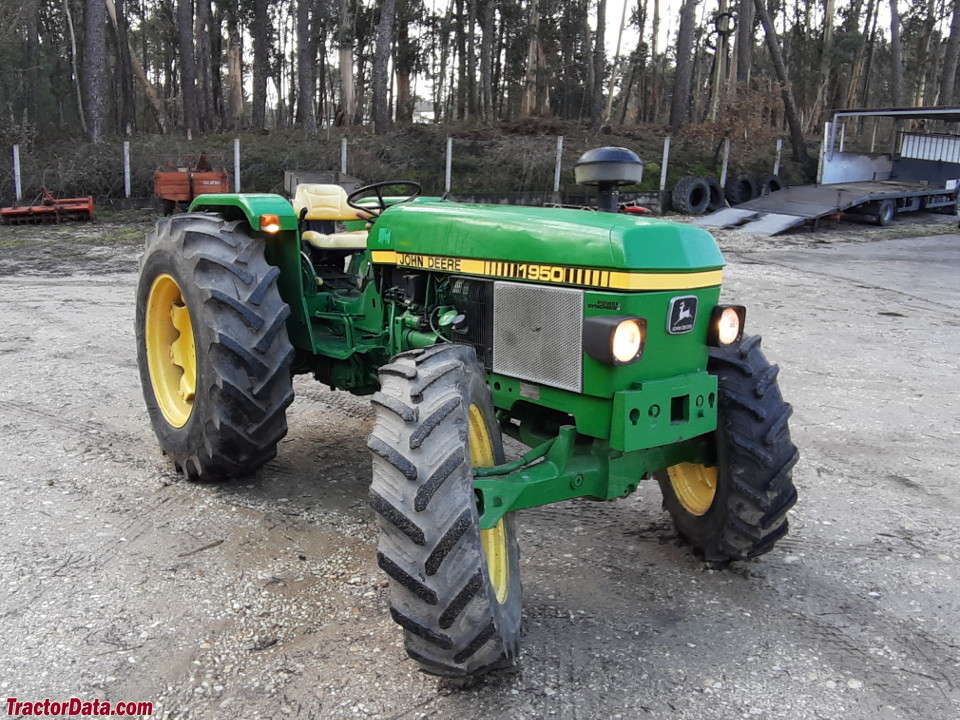

John Deere 1950 tractor photo
1988 - 1994
Utility tractor
Series map:
1850
1950
41.0kw
46.0kw
Production
ManufacturerJohn Deere
Utility tractor
Built in Mannheim, Baden-Württemberg, Germany
John Deere 1950 Engine
John Deere 2.9L 3-cyl diesel
Fuel tank19 gal
71.9 L
Engine details ...
John Deere 1950 Transmissions
8-speed synchromesh
16-speed two-speed power shift
12-speed creeper
Transmission details ...
John Deere 1950 Power
Engine (net)61.7 hp
46.0 kW
Mechanical
Two- or four-wheel drive
Final drivesplanetary
Steeringmanual
Steeringpower *Standard with four-wheel drive. Optional with two-wheel drive.
Hydraulic wet disc brakes
ROPS. Optional MC1 cab, or CC2 cab after 1990.
Photos
John Deere 1950
John Deere 1950 photos...
Hydraulics
Typeclosed center
Pressure2756 psi
190.0 bar
Pump flow11.6 gpm
43.9 lpm
Tractor hitch
Rear TypeII/I
Controlposition and draft control
Power Take-off (PTO)
Rear PTOindependent
Clutchhydraulic wet disc
Rear PTO Type540 (1.375)
 540/1000 (1.375)
Engine RPM540@2075
 1000@2172
Dimensions & Tires
2WD Wheelbase84.7 inches
215 cm
4WD Wheelbase85 inches
215 cm
Weight5798 to 6845 pounds
Front tire7.50-16
2WD Rear tire16.9-30
Full dimensions and tires ...

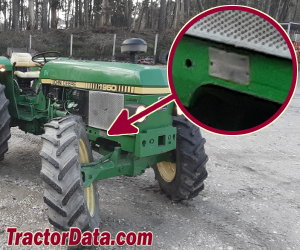

1950 Serial Number Location
John Deere 1950 serial number location
Serial number plate on the right side of the 1950 tractor frame, above the front axle.
Electrical
Groundnegative
Charging systemalternator
ROPS Charging amps55
Cab Charging amps85
Batteries2
Battery volts12
References
1950 references literature
John Deere 1950 published in 1987
Traktor 1950 published in 1987, by John Deere
