John Deere 1950 Transmission


John Deere 1950 tractor photo
1988 - 1994
Utility tractor
Series:18501950
Transmissions overview
8-speed synchromesh
16-speed two-speed power shift
12-speed creeper
Transmission
Type:synchromesh
Gears:8 forward and 4 reverse
Clutch:dry disc
Four synchronized gears (1-4) in two ranges (I/II) plus reverse range.
Speeds

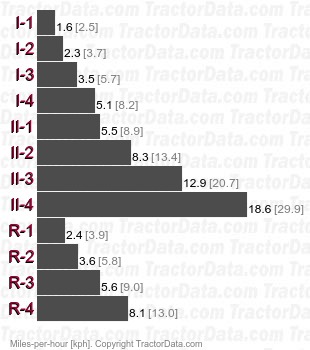

1950  synchromesh speeds
Transmission
Transmission:Power Synchron
Type:two-speed power shift
Gears:16 forward and 8 reverse
Clutch:dry disc
The optional Power Synchron transmission adds a left-hand power shift to the basic transmission.
Speeds

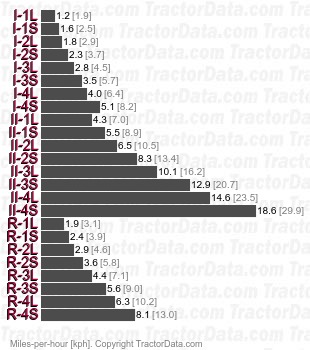

1950 Power Synchron two-speed power shift speeds
Transmission
Type:creeper
Gears:12 forward and 8 reverse
Clutch:dry disc
Speeds

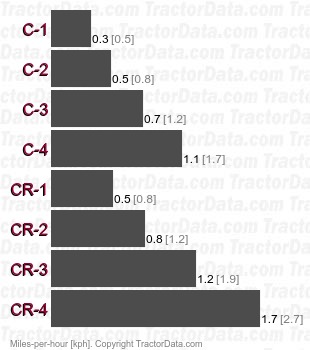

1950  creeper speeds
