| | 1986 - 1994 |
| Utility tractor |
|
Series map:
1750
1850
1950
37.3kw
41.0kw
46.0kw
| Transmissions overview |
| 8-speed synchromesh |
| 16-speed two-speed power shift |
| 12-speed creeper |
| Transmission |
| Type | synchromesh
|
| Gears | 8 forward and 4 reverse
|
| Four gears (1-4) in two ranges (I and II) plus reverse (R) range. |

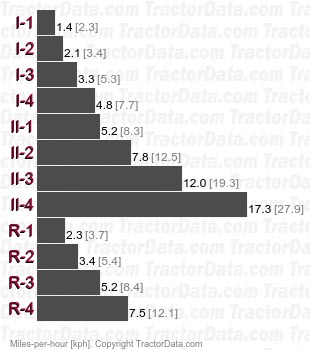

| Speeds |
| With 12.4/11-32 rear tires. |
|
| Transmission |
| Transmission | Power Synchron
|
| Type | two-speed power shift
|
| Gears | 16 forward and 8 reverse
|
| The optional Power Synchron transmission adds a left-hand power shift to the basic transmission. |

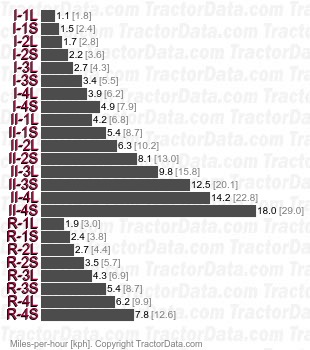

| Speeds |
|

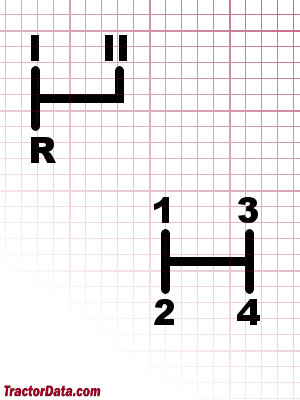

| Shift Pattern |
 |
| Transmission |
| Type | creeper
|
| Gears | 12 forward and 8 reverse
|
| Clutch | dry disc
|

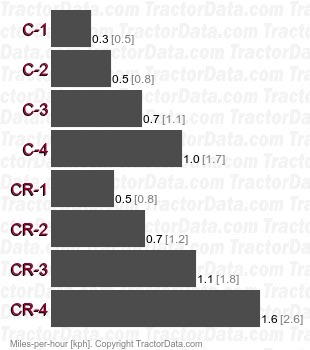

| Speeds |
|
