Farmall 460 Tests


Farmall 460 tractor photo
1958 - 1963
Row-Crop tractor
Series map:
460
560
55.0hp*
66.1hp*
*Estimated engine power for comparison only.
Tractor Tests
NTTL 670: gasoline Torque Amplifier 2WD
NTTL 672: diesel Torque Amplifier 2WD
NTTL 676: LP gas Torque Amplifier 2WD
Nebraska Tractor Test 670

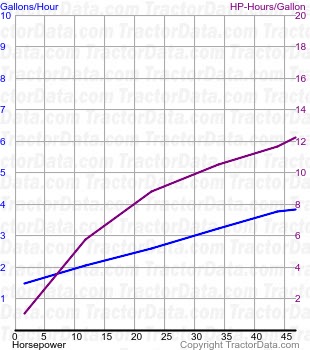

460 fuel use from test 670
Nebraska Tractor Test 670
Gasoline Torque Amplifier 2WD
September 22 - October 3, 1958
Link: Nebraska Tractor Test 670 file
Belt power (max)49.47 hp
36.9 kW
Belt fuel use (max)4.2 gal/hour
15.9 l/hour
Drawbar performance
Max power35.95 hp
26.8 kW
Fuel use3.6 gal/hour
13.6 l/hour
Nebraska Tractor Test 672

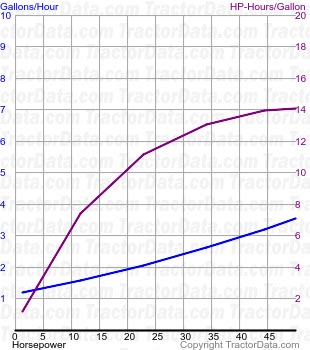

460 fuel use from test 672
Nebraska Tractor Test 672
Diesel Torque Amplifier 2WD
September 30 - October 11, 1958
Link: Nebraska Tractor Test 672 file
Belt power (max)50.10 hp
37.4 kW
Belt fuel use (max)3.6 gal/hour
13.6 l/hour
Drawbar performance
Max power36.19 hp
27.0 kW
Fuel use2.9 gal/hour
11.0 l/hour
Gear 3-DD used for power test.
Max pull6,846 lbs
3105 kg
Gear 1-TA used for pull test.
Nebraska Tractor Test 676

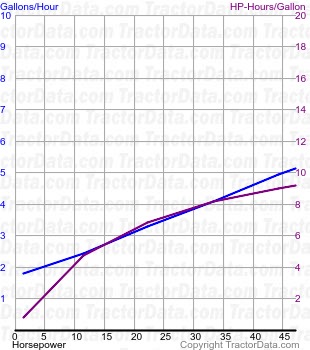

460 fuel use from test 676
Nebraska Tractor Test 676
LP gas Torque Amplifier 2WD
October 20 - 25, 1958
Link: Nebraska Tractor Test 676 file
Belt power (max)49.85 hp
37.2 kW
Belt fuel use (max)5.6 gal/hour
21.2 l/hour
Drawbar performance
Max power46.11 hp
34.4 kW
Gear 3-DD used for power test.
Max pull6,903 lbs
3131 kg
Gear 1-TA used for pull test.
