| | 1958 - 1963 |
| Row-Crop tractor |
|
Series map:
460
560
55.0hp*
66.1hp*
*Estimated engine power for comparison only.
| Engine options |
| International Harvester 3.6L 6-cyl gasoline |
| International Harvester 3.9L 6-cyl diesel |
| International Harvester 3.6L 6-cyl LP gas |
| Engine Detail |
| International Harvester C-221 |
| gasoline |
| 6-cylinder |
| liquid-cooled |
| Displacement | 221 ci
3.6 L
|
| Bore/Stroke | 3.5625x3.6875 inches
90 x 94 mm
|
| Air cleaner | oil bath
|
| Compression | 7.2:1
|
| Rated RPM | 1800
|
| Starter volts | 12
|
| Engine Detail |
| International Harvester D-236 |
| diesel |
| 6-cylinder |
| liquid-cooled |
| Displacement | 236 ci
3.9 L
|
| Bore/Stroke | 3.6875x3.6875 inches
94 x 94 mm
|
| Air cleaner | oil bath
|
| Rated RPM | 1800
|
| Starter volts | 12
|

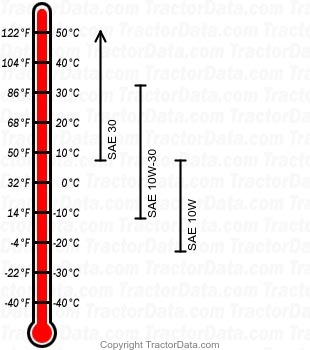

| Engine Oil |
|
| Oil capacity | 9 qts
8.5 L
|
| Engine Detail |
| International Harvester |
| LP gas |
| 6-cylinder |
| liquid-cooled |
| Displacement | 221 ci
3.6 L
|
| Bore/Stroke | 3.5625x3.6875 inches
90 x 94 mm
|
| Air cleaner | oil bath
|
| Compression | 8.75:1
|
| Rated RPM | 1800
|
| Starter volts | 12
|
