Farmall 560 Tests


Farmall 560 tractor photo
1958 - 1963
Row-Crop tractor
Series map:
460
560
55.0hp*
66.1hp*
*Estimated engine power for comparison only.
Tractor Tests
NTTL 669: diesel Torque Amplifier 2WD
NTTL 671: gasoline Torque Amplifier 2WD
NTTL 675: LP gas Torque Amplifier 2WD
Nebraska Tractor Test 669

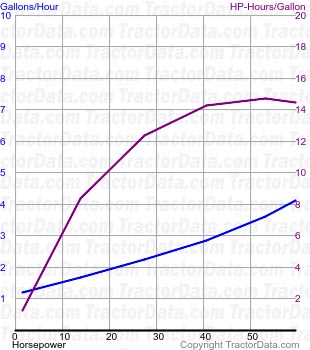

560 fuel use from test 669
Nebraska Tractor Test 669
Diesel Torque Amplifier 2WD
September 18 - 25, 1958
Link: Nebraska Tractor Test 669 file
PTO performance
Power at rated engine speed59.48 hp
44.4 kW
Fuel use4.1 gal/hour
15.5 l/hour
Drawbar performance
Max power53.12 hp
39.6 kW
Gear 3 used for power test.
Max pull7,347 lbs
3332 kg
Gear 1 used for pull test.
Nebraska Tractor Test 671

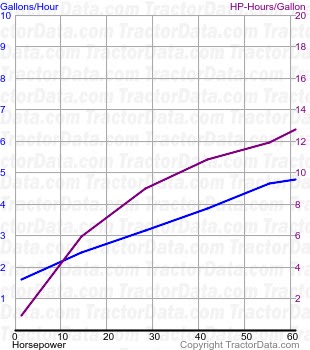

560 fuel use from test 671
Nebraska Tractor Test 671
Gasoline Torque Amplifier 2WD
September 24 - October 6, 1958
Link: Nebraska Tractor Test 671 file
PTO performance
Power at rated engine speed63.03 hp
47.0 kW
Fuel use5.0 gal/hour
18.9 l/hour
Drawbar performance
Max power50.90 hp
38.0 kW
Gear 3 used for power test.
Max pull7,588 lbs
3441 kg
Gear 1-TA used for pull test.
Nebraska Tractor Test 675

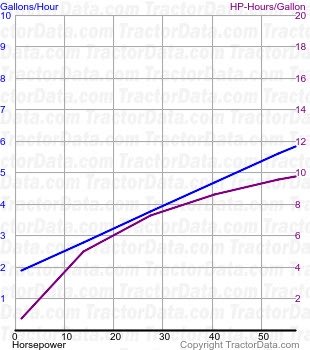

560 fuel use from test 675
Nebraska Tractor Test 675
LP gas Torque Amplifier 2WD
October 8 - 20, 1958
Link: Nebraska Tractor Test 675 file
Belt power (max)60.11 hp
44.8 kW
Belt fuel use (max)6.5 gal/hour
24.6 l/hour
Drawbar performance
Max power43.96 hp
32.8 kW
Fuel use5.1 gal/hour
19.3 l/hour
Max pull7,524 lbs
3412 kg
Gear 1-TA used for pull test.
