Ford TW-35 Engine


Ford TW-35 tractor photo
1983 - 1986
TW Series
Row-Crop tractor
TW-30
Series:TW-25TW-35
8830

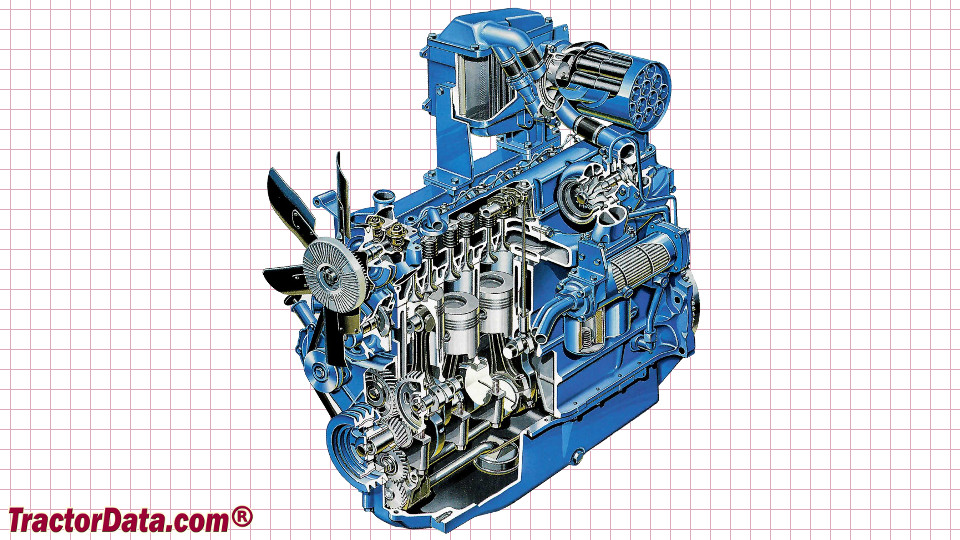

Engine Detail
Ford
turbocharged intercooled diesel
6-cylinder
liquid-cooled
Displacement:401 ci
6.6 L
Bore/Stroke:4.4x4.4 inches
112 x 112 mm
Power:187 hp
139.4 kW
Power (gross):192 hp
143.2 kW
Air cleaner:dry
Pre-heating:ether injection
 coolant heater
Compression:15.6:1
Rated RPM:2200
Torque:517 lb-ft
701.1 Nm
Torque RPM:1600
Starter volts:12
Oil capacity:20 qts
18.9 L
Coolant capacity:23 qts
21.8 L
