Challenger MT765 Tests


Challenger MT765 tractor photo
2002 - 2004
MT700 Series
Agricultural Crawler tractor
Series map:
MT755
MT765
290.0hp
306.0hp
OCED Tractor Test 1813

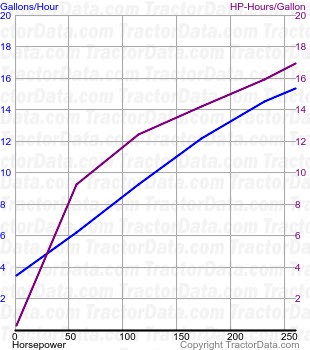

MT765 fuel use from test 379
OCED Tractor Test 1813
Diesel 16-speed crawler
October 2 - November 25, 2002
Link: OCED Tractor Test 1813 file
PTO performance
Max power298.77 hp
222.8 kW
Fuel use16.1 gal/hour
60.9 l/hour
Power at rated engine speed259.30 hp
193.4 kW
Fuel use15.3 gal/hour
57.9 l/hour
Power at rated PTO speed282.95 hp
211.0 kW
Fuel use15.9 gal/hour
60.2 l/hour
Drawbar performance
Max power258.6 hp
192.8 kW
Fuel use17.9 gal/hour
67.8 l/hour
Gear 6 used for power test.
Max pull34,542 lbs
15668 kg
Gear 1 used for pull test.
