Challenger MT765B Tests


Challenger MT765B tractor photo
2005 - 2008
MT700B Series
Agricultural Crawler tractor
Series map:
MT755B
MT765B
301.0hp
320.0hp
OCED Tractor Test 1846

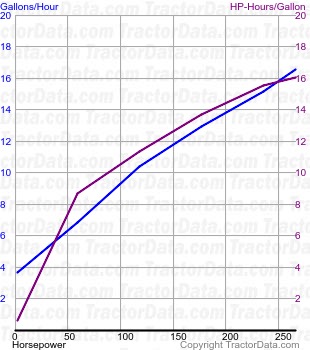

MT765B fuel use from test 478
OCED Tractor Test 1846
Diesel 16-speed crawler
May 9 - 13, 2005
Link: OCED Tractor Test 1846 file
PTO performance
Max power320.72 hp
239.2 kW
Fuel use17.7 gal/hour
67.0 l/hour
Power at rated engine speed265.78 hp
198.2 kW
Fuel use16.6 gal/hour
62.8 l/hour
Power at rated PTO speed294.81 hp
219.8 kW
Fuel use17.1 gal/hour
64.7 l/hour
Drawbar performance
Max power228.21 hp
170.2 kW
Fuel use17.0 gal/hour
64.3 l/hour
Gear 6 used for power test.
Max pull34,145 lbs
15488 kg
Gear 2 used for pull test.
