Iseki TA290


Iseki TA290 tractor photo
1985 - 1987
Landleader TA0 Series
Compact Utility tractor
Series map:
TA270
TA290
TA320
20.1kw
20.1kw
23.9kw
Production
ManufacturerIseki
Compact Utility tractor
Variants
TA2902WD
TA290F4WD
Iseki TA290 Engine
Isuzu 1.5L 4-cyl diesel
Fuel tank11.1 gal
42.0 L
Engine details ...
Iseki TA290 Power
Engine27 hp
20.1 kW
Mechanical
Two- or four-wheel drive
Open operator station.
Photos
No photos of the Iseki TA290 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Tractor hitch
Rear TypeJIS1
Power Take-off (PTO)
Rear RPM540 (1.375)
Engine RPM564@2800
705@2800
837@2800
1308@2800
Dimensions & Tires
Wheelbase71.1 inches
180 cm
Weight3053 to 3285 pounds
Front tire5.50-16
2WD Rear tire12.4-26
Full dimensions and tires ...
Electrical
Groundnegative
Battery volts12

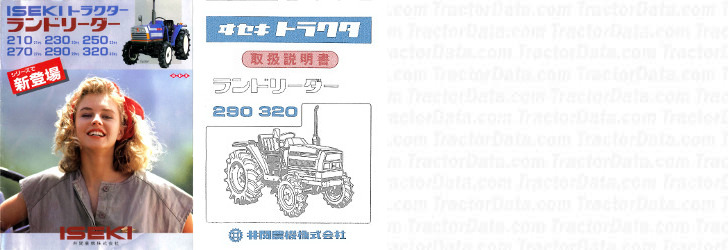

References
TA290 references literature
Landleader published in 1987, by Iseki
Operator's Manual Landleader 290 - 320 (1564-912-001-3)
