Tractors > Ford > 4000

Ford 4000 Transmission



Ford 4000 tractor photo
1962 - 1975
Model year
Utility tractor
Series map:
4000
5000
50.0hp*
69.0hp
Transmissions overview
8-speed
10-speed full power shift
Transmission
TransmissionDual Range
Gears8 forward and 2 reverse
Clutchdry disc
Oil capacity13.2 qts
12.5 L
 17 qts (independent PTO)
16.1 L

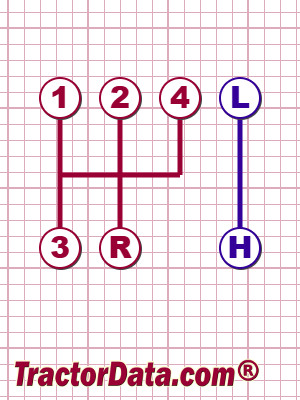

Four-speed gear selector on left, high-low range select lever on right. Tractor must be stopped before shifting.
Speeds

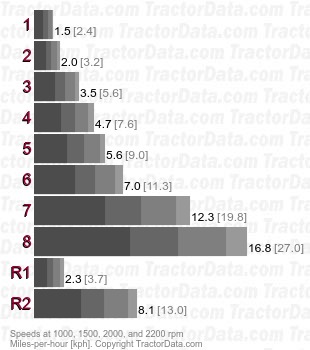

4000 Dual Range speeds
Transmission
TransmissionSelect-O-Speed
Typefull power shift
Gears10 forward and 2 reverse
Clutchhydraulic wet disc
Oil capacity12.3 qts
11.6 L
Transmission can shifted between gears while moving.
Speeds
4000 Select-O-Speed full power shift speeds
