Ford 4000 Engine
|
|
| Engine options | |
| Ford 3.1L 3-cyl gasoline | |
| Ford 3.3L 3-cyl diesel | |
| Ford 3.1L 3-cyl LP gas |
| Engine Detail | |
| Ford | |
| gasoline | |
| 3-cylinder | |
| liquid-cooled | |
| Displacement | 192 ci 3.1 L |
| Bore/Stroke | 4.40x4.20 inches 112 x 107 mm |
| Air cleaner | dry |
| Compression | 8.0:1 |
| Rated RPM | 2200 |
| Firing order | 1-2-3 |
| Starter volts | 12 |
| Coolant capacity | 14 qts 13.2 L |
| Sparkplug gap | 0.023-0.027 inches 0.584 mm |
| Point gap | 0.022-0.028 inches 0.559 mm |
| Intake valve clearance | 0.015 inches*Hot 0.381 mm |
| Exhaust valve clearance | 0.018 inches*Hot 0.457 mm |

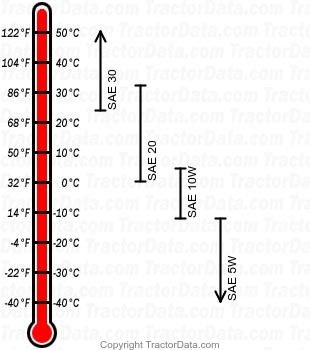

| Engine Oil | |
| |
| Oil capacity | 8 qts 7.6 L |
| Ford 4000 Engine | |
 |
| Engine Detail | |
| Ford | |
| diesel | |
| 3-cylinder | |
| liquid-cooled | |
| Displacement | 201 ci 3.3 L |
| Bore/Stroke | 4.40x4.40 inches 112 x 112 mm |
| Compression | 16.5:1 |
| Rated RPM | 2200 |
| Firing order | 1-2-3 |
| Starter volts | 12 |
| Coolant capacity | 14 qts 13.2 L |
| Intake valve clearance | 0.015 inches*Hot 0.381 mm |
| Exhaust valve clearance | 0.018 inches*Hot 0.457 mm |
| Engine Oil | |
| |
| Oil capacity | 8 qts 7.6 L |
| Engine Detail | |
| Ford | |
| LP gas | |
| 3-cylinder | |
| liquid-cooled | |
| Displacement | 192 ci 3.1 L |
| Bore/Stroke | 4.4094x4.2126 inches 112 x 107 mm |
| Rated RPM | 2200 |
| Starter volts | 12 |
