| | 1962 - 1975 |
|
| Utility tractor |
|
Series map:
2000
4000
48.4hp
62.5hp
| Transmission options |
| 4-speed gear |
| 10-speed full power shift |
| 5-speed gear |
| 12-speed |

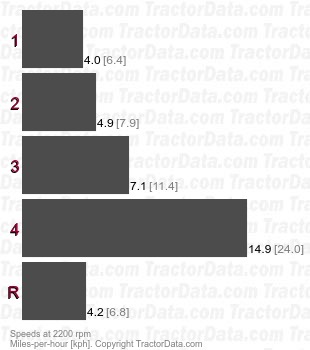

| Transmission |
| Type | gear
|
| Gears | 4 forward and 1 reverse
|
| Clutch | 254mm dry disc
|
| Oil capacity | 6.5 qts
6.2 L
|
| Speeds |
| With 13.6-28 rear tires. |
|

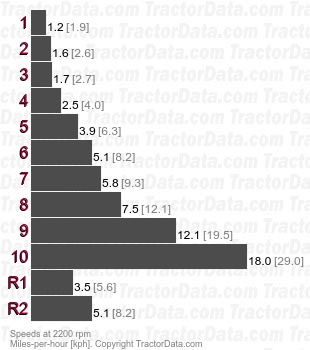

| Transmission |
| Transmission | Ford Select-O-Speed
|
| Type | full power shift
|
| Gears | 10 forward and 2 reverse
|
| Speeds |
| With 13.6-28 rear tires. |
|

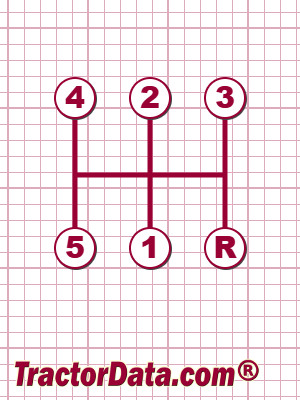

| Shift Pattern |
 |

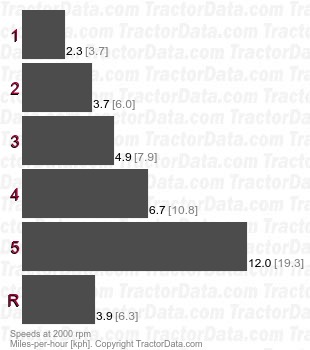

| Transmission |
| Type | gear
|
| Gears | 5 forward and 1 reverse
|
| Clutch | double 228.6mm dry discs
|
| Oil capacity | 8 qts
7.6 L
|
| Speeds |
| With 13.6-28 rear tires. |
|

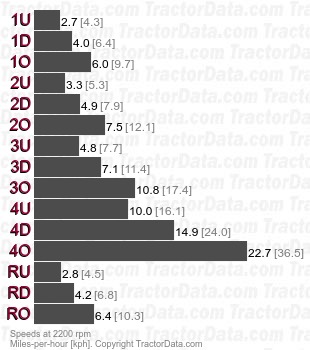

| Transmission |
| Transmission | Over-Under
|
| Gears | 12 forward and 3 reverse
|
| Speeds |
| With 13.6-28 rear tires. |
|
