Montana R2844
| | 2007 - 2010 |
| R Series | | Compact Utility tractor | | LS built |
|
| Production |
| Distributor: | Montana
|
| Manufacturer: | LS
|
| Type: | Compact Utility tractor
|
| Montana R2844 Power |
| Engine: | 28 hp
20.9 kW
|
| Gear PTO (claimed): | 23 hp
17.2 kW
|
| Hydro PTO (claimed): | 22 hp
16.4 kW
|
| Mechanical |
| Chassis: | 4x4 MFWD 4WD
|
| Steering: | power
|
| Brakes: | wet disc
|
| Cab: | Two-post ROPS.
|
| Transmissions: | 12-speed
|
| | hydrostatic
|
 Transmission details ... |
| Hydraulics |
| Pressure: | 2417 psi
166.7 bar
|
| Valves: | 2
|
| Pump flow: | 7.9 gpm
29.9 lpm
|
| Steering flow: | 3.434 gpm
13.0 lpm
|
| Steering press.: | 1706 psi
117.6 bar
|
| Tractor hitch |
| Rear Type: | I
|
| Rear lift (at ends): | 2619 lbs
1187 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 540
|
| Mid PTO: | optional
|
| Electrical |
| Charging system: | alternator
|
| Charging amps: | 50
|
| Battery volts: | 12
|
| Page information |
| Last update: | September 14, 2017
|
| Copyright: | Copyright 2021 TractorData LLC
|
| Contact: | Peter@TractorData.com
|
©2000-2021 - TractorData.com®. Notice: Every attempt is made to ensure the data listed
is accurate. However, differences between sources, incomplete listings,
errors, and data entry mistakes do occur.
Consult official
literature from the manufacturer before attempting any service or repair.
Engine details ...

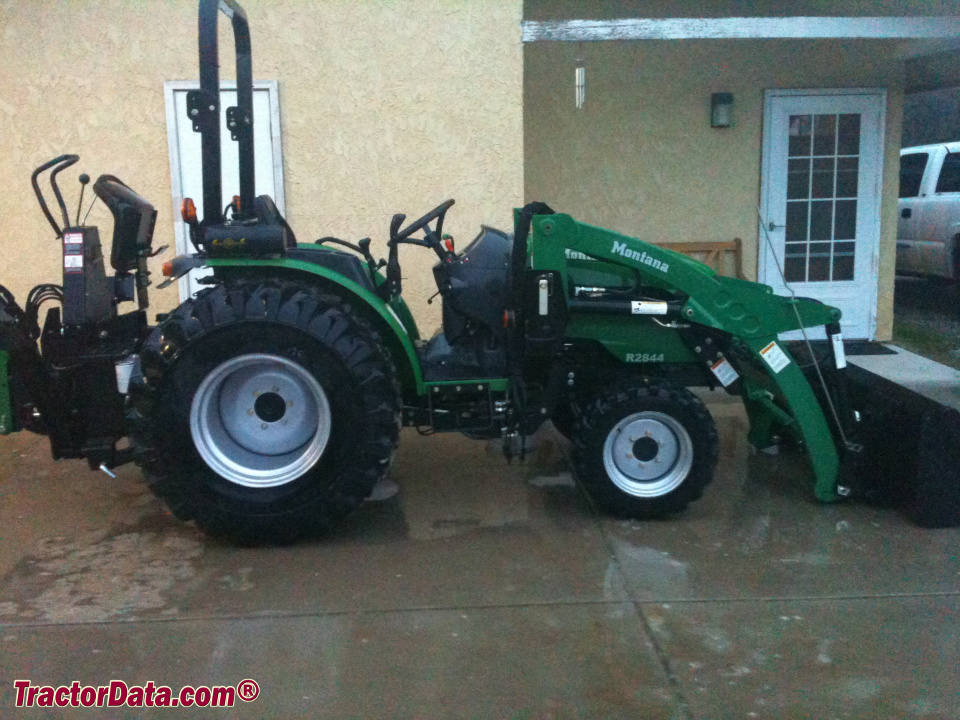

Montana R2844 photos...
