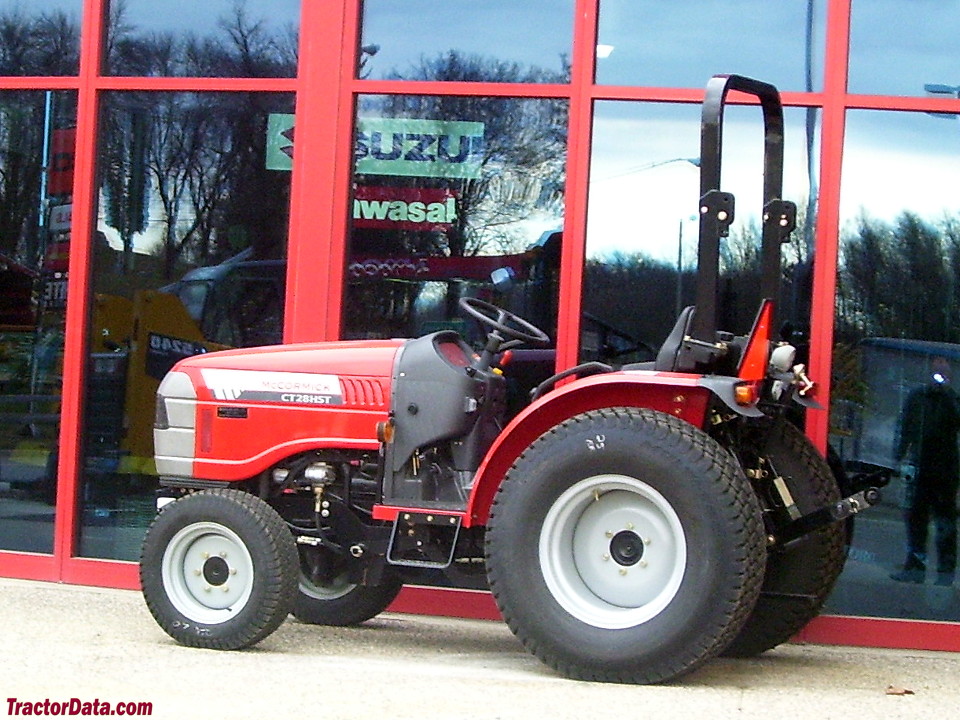

McCormick Intl CT28
|
|
| Production | |
| Manufacturer | McCormick Intl (a part of Argo) |
| Compact Utility tractor | |
| Original price was $24,300 in 2008 | |
| Variants | |
| CT28 | gear |
| CT28HST | hydrostatic |
| McCormick Intl CT28 Engine | |
| Mitsubishi 1.5L 4-cyl diesel | |
| Fuel tank | 8.5 gal 32.2 L |
 Engine details ... | |
| McCormick Intl CT28 Transmissions | |
| 12-speed synchro shuttle | |
| hydrostatic | |
 Transmission details ... |
| McCormick Intl CT28 Power | |
| Engine (gross) | 28 hp 20.9 kW |
| Gear PTO (claimed) | 23 hp 17.2 kW |
| Hydro PTO (claimed) | 22 hp 16.4 kW |
| Mechanical | |
| Four-wheel drive | |
| Power steering | |
| Wet disc brakes | |
| Two-post folding ROPS. |
| Hydraulics | |
| Valves | 2 |
| Pump flow | 8 gpm 30.3 lpm |
| Steering flow | 3.4 gpm 12.9 lpm |
| Tractor hitch | |
| Rear Type | I |
| Rear lift (at ends) | 2620 lbs 1188 kg |
| Power Take-off (PTO) | |
| Rear PTO | independent |
| Rear PTO Type | 540 |
| Mid PTO Type | 2100 |
| Dimensions & Tires | |
| Wheelbase | 65 inches 165 cm |
| Weight | 2645 lbs 1199 kg |
| Front tire | 7x14 |
| Rear tire | 11.2-24 |
 Full dimensions and tires ... | |
| McCormick Intl CT28 attachments | |
| 66" mid-mount mower deck | |
| front-end loader | |
| backhoe | |
 Attachment details ... |
| Electrical | |
| Ground | negative |
| Charging system | alternator |
| Charging amps | 50 |
| Charging volts | 12 |
| Battery volts | 12 |
| References | |
 | |
| CT Series published in 2006, by McCormick | |
| CT Series published in 2008, by McCormick | |
| CT Series published in 2009, by McCormick |
