John Deere 7730
| | 2007 - 2011 |
| 7030 Series | | Row-Crop tractor |
|
Series map:
7630
7730
7830
175.0hp
190.0hp
205.0hp
| Production |
| Manufacturer | John Deere
|
| Row-Crop tractor |
| Built in Waterloo, Iowa, USA |
| John Deere 7730 Power |
| Engine | 190 hp
141.7 kW
|
| PTO (claimed) | 152 hp
113.3 kW
|
| Drawbar (tested) | 139.10 hp
103.7 kW
|
| PTO (tested) | 172.51 hp
128.6 kW
|
 Performance test details ... |
| Mechanical |
| Two- or four-wheel drive |
| Power steering |
| Hydraulic wet disc brakes |
| Cab standard with air-conditioning. |
| Capacity |
| Fuel | 103 gal
389.9 L
|
| | 94 gal (with right-hand steps)
355.8 L
|
| Hydraulic system | 28.5 gal
107.9 L
|
| Hydraulics |
| Type | closed center load-sensing
|
| Capacity | 28.5 gal
107.9 L
|
| Pressure | 2900 psi
200.0 bar
|
| Valves | 2 to 7
|
| SCV flow | 30 gpm
113.6 lpm
|
| Total flow | 32 gpm
121.1 lpm
|
| | 45 gpmOptOptional
170.3 lpm
|
| Tractor hitch |
| Rear Type | III
|
| Rear lift | 10,050 lbs
4558 kg
|
| | 14,000 lbsOptOptional
6350 kg
|
| Power Take-off (PTO) |
| Rear PTO | independent
|
| Clutch | hydraulic wet disc
|
| Rear PTO Type | 540/1000 (1.375)
|
| Engine RPM | 540E@1750
|
| | 540@1950
|
| | 1000E@1750
|
| | 1000@1950
|

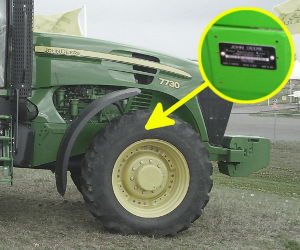

| 7730 Serial Number Location |
 |
| Serial number plate on the right side of the tractor frame, above the front axle. |
| Electrical |
| Ground | negative
|
| Charging system | alternator
|
| Charging amps | 200
|
| Batteries | 2
|
| Battery CCA | 925
|
| Battery volts | 12
|
| References |
 |
| 7030 Series Tractors published in 2006, by John Deere |
