John Deere 7730 Engine


John Deere 7730 tractor photo
2007 - 2011
7030 Series
Row-Crop tractor
7720
Series:763077307830
7215R

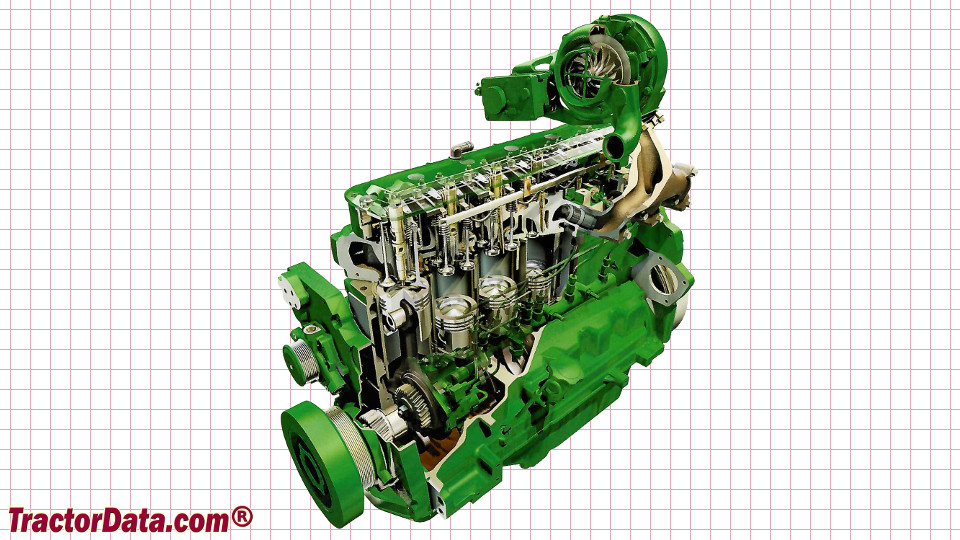

Engine Detail
John Deere
turbocharged intercooled diesel
6-cylinder
liquid-cooled
Displacement:414 ci
6.8 L
Bore/Stroke:4.19x5.00 inches
106 x 127 mm
Power:190 hp
141.7 kW
Fuel system:high-pressure common rail
Cooling system:viscous fan
Air cleaner:dual paper elements
Compression:17:1
Rated RPM:2100
Torque:564 lb-ft
764.8 Nm
Torque RPM:1600
Firing order:1-5-3-6-2-4
Starter volts:12
Oil capacity:27.5 qts
26.0 L
