AGCO ST25
| | 2001 - 2004 |
| ST Series | | Compact Utility tractor | | Iseki built |
|
Series map:
ST25
ST30x
24.3hp
28.4hp
| Production |
| Distributor | AGCO
|
| Manufacturer | Iseki
|
| Compact Utility tractor |
| Built in Matsuyama, Japan |
| Variants |
| 1225 | similar Massey Ferguson model
|
| AGCO ST25 Power |
| Engine (gross) | 24.3 hp
18.1 kW
|
| Engine (net) | 22.2 hp
16.6 kW
|
| Gear PTO (claimed) | 19.2 hp
14.3 kW
|
| Hydro PTO (claimed) | 18.7 hp
13.9 kW
|
| Mechanical |
| Four-wheel drive |
| Final drives | spur gear
|
| Differential lock | mechanical rear
|
| Power steering |
| Dry shoe brakes |
| Two-post ROPS. |
| Capacity |
| Fuel | 6.1 gal
23.1 L
|
| Hydraulic system | 3.7 gal
14.0 L
|
| Hydraulics |
| Type | open center
|
| Capacity | 3.7 gal
14.0 L
|
| Pressure | 1990 psi
137.2 bar
|
| Pump flow | 5.3 gpm
20.1 lpm
|
| Total flow | 7.9 gpm
29.9 lpm
|
| Steering flow | 2.64 gpm
10.0 lpm
|
| Steering press. | 1493 psi
102.9 bar
|
| Tractor hitch |
| Rear Type | I
|
| Control | position control
|
| Rear lift (at ends) | 1210 lbs
548 kg
|
| Rear lift (at 24"/610mm) | 694 lbs
314 kg
|
| Rear Arms | fixed link ends with turn-buckle stabilizer
|
| Power Take-off (PTO) |
| Rear PTO | transmission (gear)
|
| | independent (hydro)
|
| Clutch | electro-hydraulic wet disc (hydro)
|
| Rear PTO Type | 540 (1.375)
|
| Engine RPM | 540@2681 (hydro)
|
| | 540@2732 (gear)
|
| Mid PTO | transmission (gear)
|
| | independent (hydro)
|
| Mid PTO Type | SAE 15 1.0
|
| Engine RPM | 2000@2583 (hydro)
|
| | 2000@2698 (gear)
|
| Electrical |
| Ground | negative
|
| Charging system | alternator
|
| Charging amps | 40
|
| Battery volts | 12
|

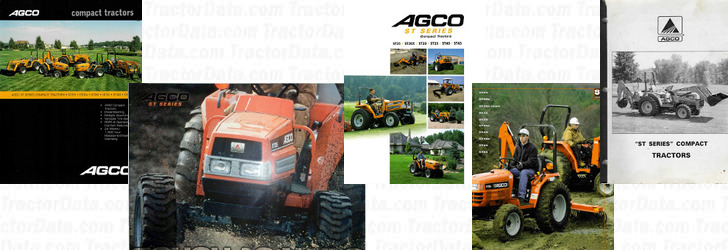

| References |
 |
| Compact Tractors published in 2000, by AGCO |
| ST Series published in 2001, by AGCO |
| ST Series Compact Tractors published in 2002, by AGCO |
| ST Series published in 2004, by AGCO |
| ST Series Compact Tractors published in 2001, by AGCO* |
| *Publication contains known errors. |
