John Deere 6410

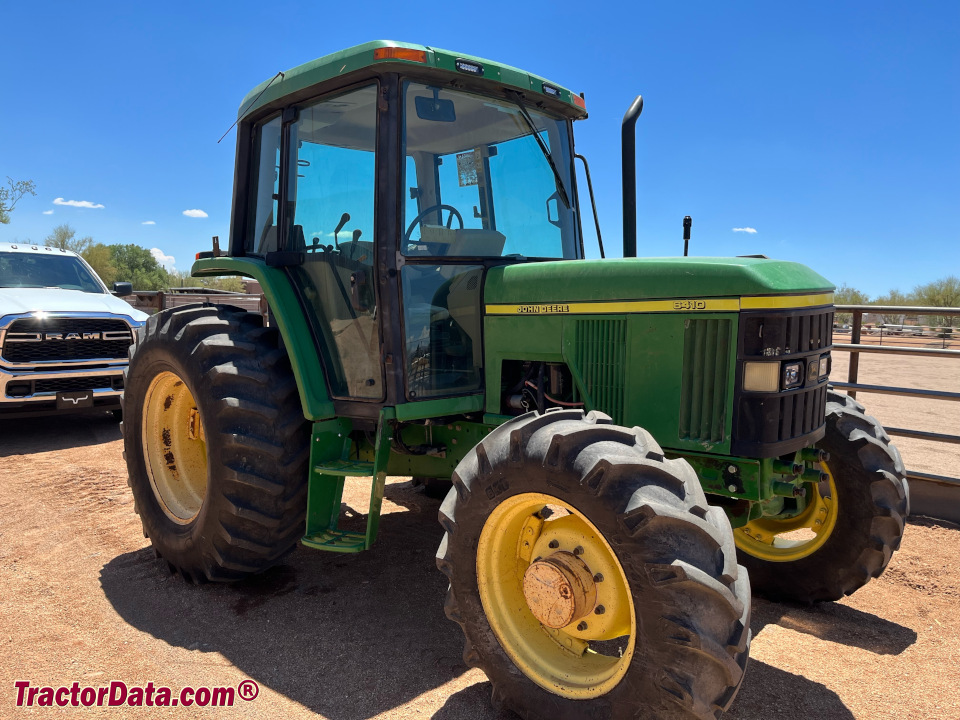

John Deere 6410 tractor photo
1999 - 2002
6000 TEN Series
Utility tractor
Series map:
6310
6410
99.0hp
104.0hp
Production
ManufacturerJohn Deere
Utility tractor
Built in Mannheim, Baden-W├╝rttemberg, Germany
Variants
6410utility tractor
6410Llow-profile
6410Slow-profile cab
John Deere 6410 Engine
John Deere 4.5L 4-cyl diesel
Fuel tank30.7 gal*Standard on ROPS-equipped tractors. Optional on cab tractors.
116.2 L
 43.6 gal*Standard on cab tractors. Optional on ROPS tractors.
165.0 L
 48 gal*Optional on cab tractors.
181.7 L
Engine details ...
John Deere 6410 Transmissions
12-speed fully synchronized
16-speed four-speed power shift
24-speed four-speed power shift
Transmission details ...
John Deere 6410 Power
Engine (gross)104 hp
77.6 kW
PTO (claimed)90 hp
67.1 kW
Drawbar (tested)74.8 hp
55.8 kW
PTO (tested)98.0 hp
73.1 kW
Performance test details ...
Mechanical
Two- or four-wheel drive
Final drivesinboard planetary
Power steering
Differential hydraulic wet disc brakes
Two-post ROPS. ComfortGard cab optional with air-conditioning.
Hydraulics
Typeclosed center pressure-flow compensating
Pressure2900 psi
200.0 bar
Valves1 to 4
Pump flow25.4 gpm
96.1 lpm
 18.9 gpmOptOptional
71.5 lpm
Tractor hitch
Rear TypeII
Controlelectronic lower-link draft sensing
Rear lift5915 lbs
2683 kg
Front Hitchoptional
Power Take-off (PTO)
Rear PTOindependent
Rear RPM540/1000 (1.375)
Dimensions & Tires
Wheelbase94.5 inches
240 cm
Weight7607 to 9680 pounds
Front tire7.50-18
2WD Rear tire18.4-34
Full dimensions and tires ...
Electrical
Groundnegative
Charging systemalternator
ROPS Charging amps90
Cab Charging amps115
Battery CCA830
 1230 OptOptional
Battery volts12
Battery AH110
 154 OptOptional
References
6410 references literature
6000 TEN Series published in 1998, by John Deere
6000 TEN Series and Advantage Series Tractors published in 1998, by John Deere
6000 TEN Series Tractors and Advantage Series Tractors Product Information Handbook published in 1998, by John Deere
