Allis Chalmers HD3


Allis Chalmers HD3 tractor photo
1960 - 1968
Agricultural Crawler tractor
Production
ManufacturerAllis Chalmers
Agricultural Crawler tractor
Built in Springfield, Illinois, USA
The Allis-Chalmers H3 crawler was based on the diesel-powered D15 farm tractor.
Variants
H3gas engine
HD3diesel engine
Allis Chalmers HD3 Engine
Allis Chalmers 2.9L 4-cyl diesel
Engine details ...
Allis Chalmers HD3 Transmissions
8-speed two-speed power shift
4-speed mechanical shuttle
Transmission details ...
Allis Chalmers HD3 Power
Drawbar (tested)26.17 hp
19.5 kW
PTO (tested)32.53 hp
24.3 kW
Performance test details ...
Mechanical
Drivecrawler
Steeringmechanical clutches
Mechanical contracting band brakes
Open operator station.
Photos
No photos of the Allis Chalmers HD3 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Capacity
Fuel14 gal
53.0 L
Hydraulic system16.5 gal
62.5 L
Hydraulics
Typeopen center
Capacity16.5 gal
62.5 L
Valves1 to 3
Pump flow15 gpm
56.8 lpm
 25 gpm (optional)
94.6 lpm
Power Take-off (PTO)
Rear PTOoptional
Rear RPM540
Dimensions & Tracks
Weight7645 lbs
3467 kg
7-inch tracks
Full dimensions and tracks ...
HD3 Serial Numbers
19601001
19611250
19623199
19636001
19646945
19657890
19668856
19679483
19689700
Final9949

FAQ: How to read a serial number table.
References

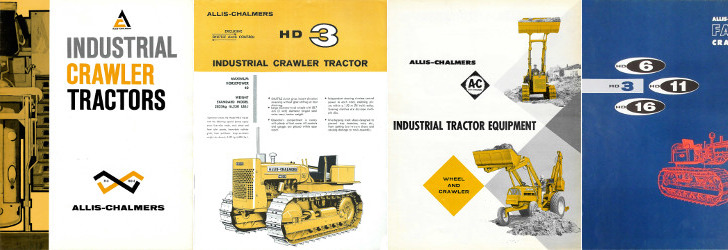

HD3 references literature
H3 / HD-3 Industrial Crawler Tractors published in 1967, by Allis Chalmers
HD-3 published in 1964, by Allis Chalmers
Industrial Tractor Equipment published in 1962, by Allis Chalmers
Farm Crawlers published in 1962, by Allis Chalmers
