Allis Chalmers HD3 Tests

Allis Chalmers HD3 tractor photo
1960 - 1968
Agricultural Crawler tractor
Nebraska Tractor Test 794

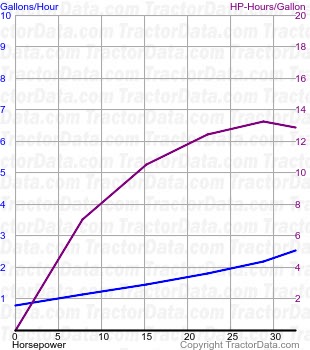

HD3 fuel use from test 794
Nebraska Tractor Test 794
Diesel 8-speed crawler
May 12 - 26, 1961
Link: Nebraska Tractor Test 794 file
PTO performance
Power at rated engine speed32.53 hp
24.3 kW
Fuel use2.6 gal/hour
9.8 l/hour
Drawbar performance
Max power26.17 hp
19.5 kW
Fuel use2.6 gal/hour
9.8 l/hour
Gear 2H used for power test.
Max pull8207 lbs
3722 kg
Gear 1L used for pull test.
