Allis Chalmers L
|
|
| Production | |
| Manufacturer | Allis Chalmers |
| Agricultural Crawler tractor | |
| Built in Springfield, Illinois, USA | |
| Total built | 3,357 |
| Variants | |
| L | gasoline |
| L-O | diesel |
| Allis Chalmers L Engines | |
| Allis Chalmers 13.8L 6-cyl gasoline | |
| Allis Chalmers 14.5L 6-cyl diesel | |
| Fuel tank | 75 gal 283.9 L |
 Engine details ... | |
| Allis Chalmers L Transmission | |
| 6-speed gear | |
 Transmission details ... |
| Allis Chalmers L Power | |
| Drawbar (claimed) | 60 hp 44.7 kW |
| 68.7 hp (late) 51.2 kW | |
| Belt (claimed) | 80.5 hp 60.0 kW |
| 93.6 hp (late) 69.8 kW | |
| Drawbar (tested) | 91.99 hp 68.6 kW |
| Belt (tested) | 108.84 hp 81.2 kW |
 Performance test details ... | |
| Mechanical | |
| Drive | crawler |
| Open operator station. | |

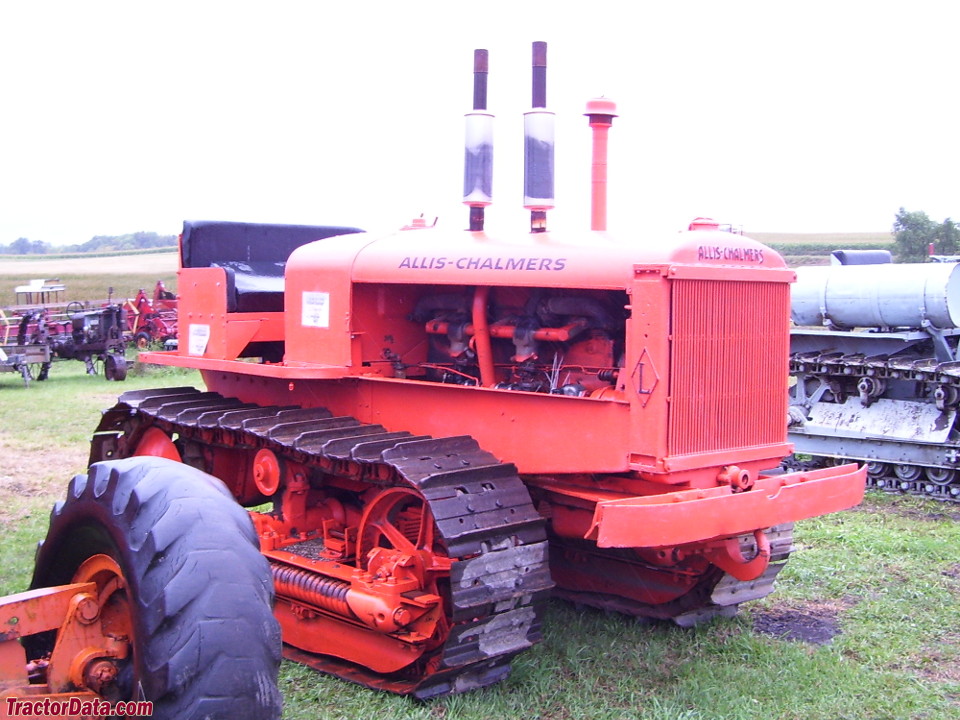

| Photos | |
 | |
 Allis Chalmers L photos... | |
| Dimensions & Tracks | |
| Weight | 22000 lbs 9979 kg |
| 16-inch tracks | |
 Full dimensions and tracks ... | |
| L Serial Numbers | |
| Location: | transmission case or instrument panel |
| 1931 | 1 |
| 1932 | 35 |
| 1933 | 499 |
| 1934 | 661 |
| 1935 | 888 |
| 1936 | 1439 |
| 1937 | 2137 |
| 1938 | 2706 |
| 1939 | 2944 |
| 1940 | 3233 |
| 1941 | 3252 |
| 1942 | 3273 |
| Final | 3357 |
FAQ: How to read a serial number table. | |
| References | |
 | |
| Agricultural Catalog published in 1935, by Allis Chalmers | |
| Build a Better Farm published in 1940, by Allis Chalmers |
