Tractors > Allis Chalmers > L

Allis Chalmers L Tests



Allis Chalmers L tractor photo
1931 - 1942
Agricultural Crawler tractor
Tractor Tests
NTTL 200: gasoline 6-speed crawler
NTTL 287: diesel 6-speed crawler
NTTL 338: gasoline 6-speed crawler
Nebraska Tractor Test 200

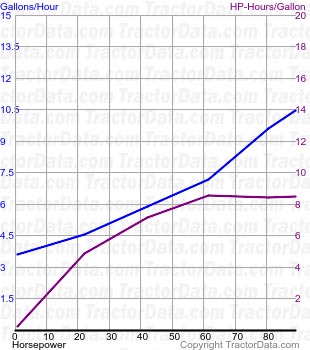

L fuel use from test 200
Nebraska Tractor Test 200
Gasoline 6-speed crawler
March 17 - April 11, 1932
Link: Nebraska Tractor Test 200 file
Belt power (max)91.93 hp
68.6 kW
Belt fuel use (max)10.9 gal/hour
41.3 l/hour
Drawbar performance
Max power76.01 hp
56.7 kW
Gear 2 used for power test.
Max pull15086 lbs
6843 kg
Gear 1 used for pull test.
Nebraska Tractor Test 287

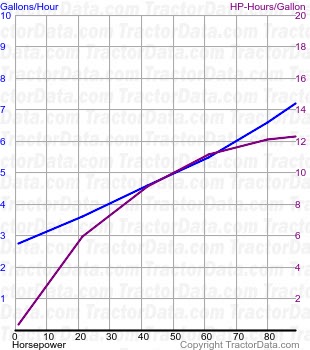

L fuel use from test 287
Nebraska Tractor Test 287
Diesel 6-speed crawler
September 9 - 22, 1937
Link: Nebraska Tractor Test 287 file
Belt power (max)91.56 hp
68.3 kW
Belt fuel use (max)7.3 gal/hour
27.6 l/hour
Drawbar performance
Max power76.75 hp
57.2 kW
Gear 2 used for power test.
Max pull20273 lbs
9195 kg
Gear 1 used for pull test.
Nebraska Tractor Test 338

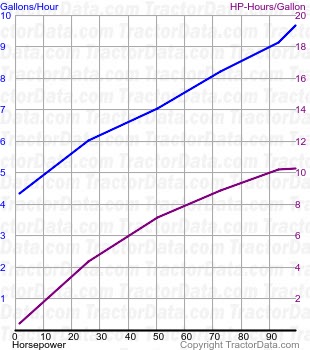

L fuel use from test 338
Nebraska Tractor Test 338
Gasoline 6-speed crawler
November 23 - 28, 1939
Link: Nebraska Tractor Test 338 file
Belt power (max)108.84 hp
81.2 kW
Belt fuel use (max)10.5 gal/hour
39.7 l/hour
Drawbar performance
Max power91.99 hp
68.6 kW
Gear 2 used for power test.
Max pull23851 lbs
10818 kg
Gear 1 used for pull test.
