John Deere 4400 Transmission


John Deere 4400 tractor photo
1998 - 2001
4000 Compact Series
Compact Utility tractor
Series map:
4300
4400
4500
32.2hp
35.7hp
39.0hp
Transmission options
12-speed partially synchronized
hydrostatic
Transmission
TransmissionSyncReverser
Typepartially synchronized
Gears12 forward and reverse
Clutchwet discs, two clutch packs with nine four-inch discs each
Oil capacity25.2 qts
23.8 L
Four gears (1-4) in three ranges (A-C) with left-hand reverser on steering column. Gears may be shifting on the move, using the clutch. Tractor must be stopped, and clutch used, to shift range.
Speeds
With 11.2-24 rear tires.
4400 SyncReverser partially synchronized speeds
Transmission
Typehydrostatic
Gearsinfinite forward and reverse (3-range)
Oil capacity27.2 qts
25.7 L
Hydrostatic transmission operated by two foot pedals and left-hand range shift lever. Tractor must be stopped to shift ranges. Push-button cruise control.
Speeds
With 11.2-24 rear tires.

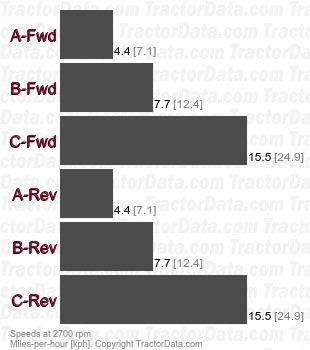

4400  hydrostatic speeds
