Lamborghini 956

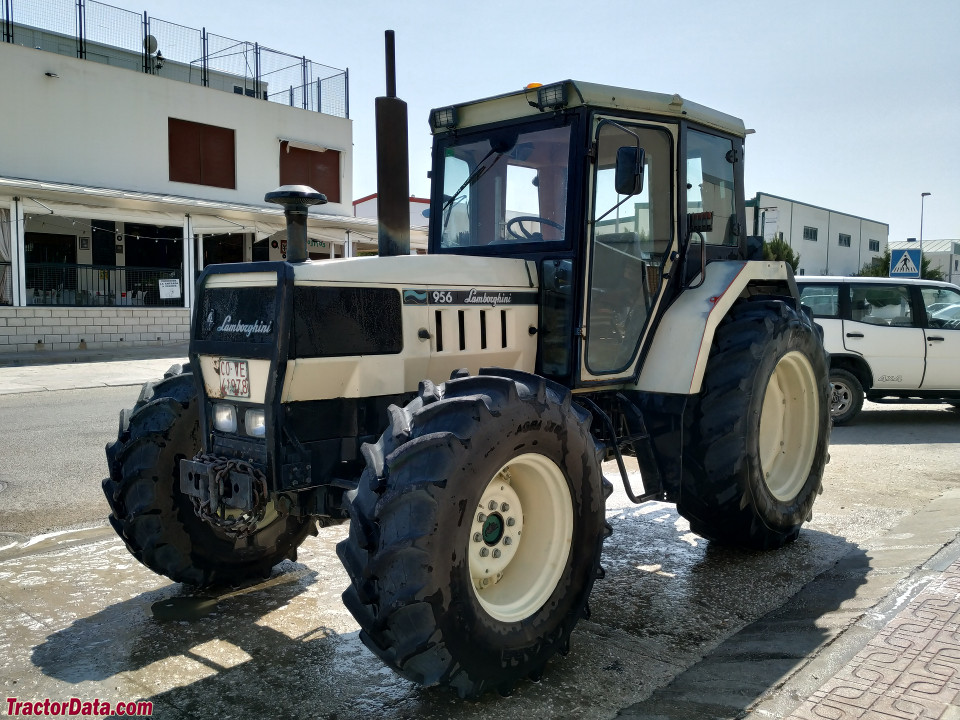

Lamborghini 956 tractor photo
1983 - 1996
Row-Crop tractor
Series map:
956
1106
70.8kw
82.0kw
Production
ManufacturerLamborghini (a part of SAME)
Row-Crop tractor
Lamborghini 956 Engine
Lamborghini 5.5L 6-cyl diesel
Fuel tank34.3 gal
129.8 L
Engine details ...
Lamborghini 956 Transmissions
12-speed
24-speed
20-speed creeper
Transmission details ...
Lamborghini 956 Power
Engine95 hp
70.8 kW
Mechanical
Two- or four-wheel drive
Final drivesplanetary
Differential lockmechanical front and rear
Power steering
Hydraulic wet disc brakes
Trailer brakeshydraulic OptOptional
Cab available with air-conditioning.
Hydraulics
Pump flow16.6 gpm
62.8 lpm
Tractor hitch
Rear TypeII
Controlposition and draft control
Rear lift10141 lbs
4599 kg
Power Take-off (PTO)
Rear PTOindependent
Clutchelectro-hydraulic wet disc
Rear PTO Type540/1000 (1.375)
Dimensions & Tires
2WD Wheelbase103 inches
261 cm
4WD Wheelbase102.4 inches
260 cm
Weight8025 to 9656 pounds
Front tire9.00-16
2WD Rear tire16.9/14-38
Full dimensions and tires ...
Electrical
Charging systemalternator
ROPS Charging amps45
Cab Charging amps55
Battery volts12
Battery AH110
References
956 references literature
C956 published in 1988, by Lamborghini
