| | 1983 - 1996 |
| Row-Crop tractor |
|
Series map:
956
1106
70.8kw
82.0kw
| Transmission options |
| 12-speed |
| 24-speed |
| 20-speed creeper |
| Transmission |
| Gears | 12 forward and 3 reverse
|
| Clutch | hydraulic dry disc
|
| Four gears (1-4) plus reverse (R) in three ranges (L/N/V). |

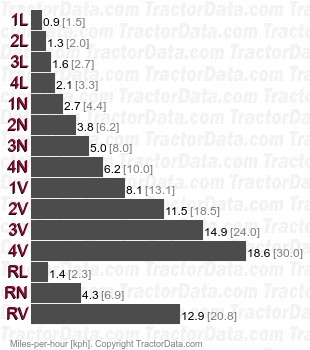

| Speeds |
| With 16.9/14-38 rear tires. |
|
| Transmission |
| Gears | 24 forward and 12 reverse
|
| Clutch | hydraulic dry disc
|
| Transmission |
| Type | creeper
|
| Gears | 20 forward and 12 reverse
|
| Add additional creeper (Super Reduction) range for ranges L and N. |

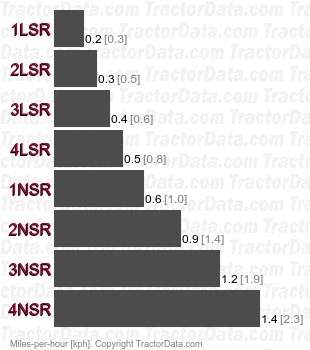

| Speeds |
| With 16.9/14-38 rear tires. |
|
