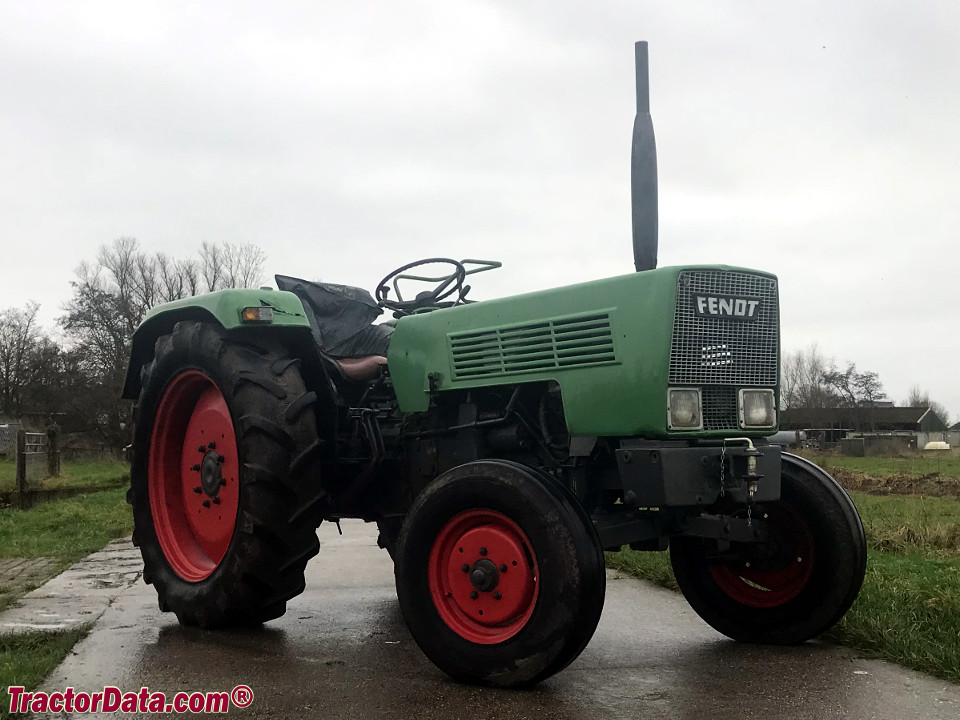

Fendt Farmer 103S
| | 1972 - 1984 |
|
| Farmer 100 Series | | Row-Crop tractor |
|
| Production |
| Manufacturer: | Fendt
|
| Type: | Row-Crop tractor
|
| Fendt Farmer 103S Power |
| Engine: | 48 hp
35.8 kW
|
| Mechanical |
| Chassis: | 4x2 2WD
|
| | 4x4 MFWD 4WD
|
| Steering: | manual
|
| Steering: | power*Optional
|
| Brakes: | mechanical drum
|
| Cab: | Four-post ROPS.
|
| Transmissions: | 13-speed synchronized
|
| | 16-speed creeper
|
 Transmission details ... |
| Hydraulics |
| Pressure: | 2538 psi
175.0 bar
|
| Pump flow: | 8.9 gpm
33.7 lpm
|
| Tractor hitch |
| Rear Type: | II/I
|
| Rear lift: | 4410 lbs
2000 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 540/1000 (1.375)
|
