Fendt Farmer 102S

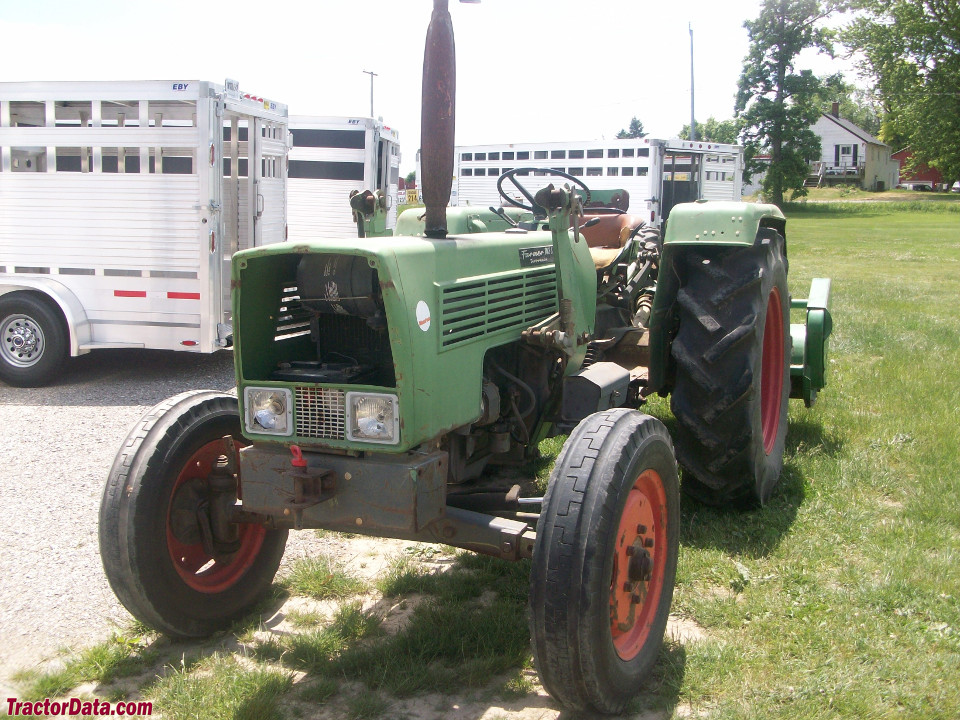

Fendt Farmer 102S tractor photo
1972 - 1987
Model year
Farmer 100 Series
Row-Crop tractor
Series:Farmer 102SFarmer 103S
Type:Row-Crop tractor
Fendt Farmer 102S Power
Engine:40 hp
29.8 kW
Fendt Farmer 102S Engine
MWM 2.6L 3-cyl diesel
Fuel tank:17.2 gal
65.1 L
Engine details ...
Chassis:4x2 2WD
 4x4 MFWD 4WD
Brakes:mechanical drum
Cab:Four-post ROPS.
Transmissions:13-speed synchronized
 16-speed creeper
Transmission details ...
Tractor hitch
Rear Type:II/I
Rear lift:4410 lbs
2000 kg
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540/1000 (1.375)
Dimensions & Tires
2WD Wheelbase:82 inches
208 cm
4WD Wheelbase:83.4 inches
211 cm
Weight:5049 to 6019 pounds
Front tire:6.00-16
Rear tire:9.5/9-36
Full dimensions and tires ...
