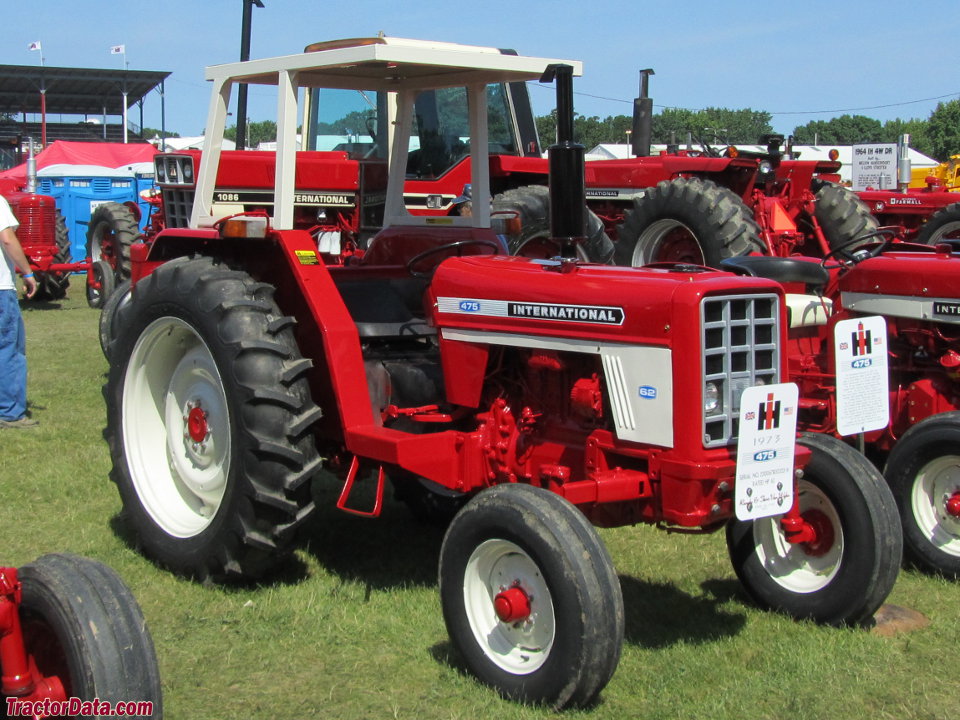

International Harvester 475
|
|
| Production | |
| Manufacturer | International Harvester |
| Utility tractor | |
| Built in Doncaster, England | |
| International Harvester 475 Engine | |
| Perkins 3.5L 4-cyl diesel | |
| Fuel tank | 20.3 gal 76.8 L |
 Engine details ... | |
| International Harvester 475 Transmissions | |
| 8-speed partially synchronized | |
| 16-speed two-speed power shift | |
 Transmission details ... |
| International Harvester 475 Power | |
| Engine | 60 hp 44.7 kW |
| PTO (claimed) | 49 hp 36.5 kW |
| Mechanical | |
| Two-wheel drive | |
| Final drives | planetary |
| Differential lock | mechanical rear |
| Power steering | |
| Wet disc brakes | |
| Open operator station. Four-post ROPS and cab available. | |
| Hydraulics | |
| Pump flow | 11.9 gpm 45.0 lpm |
| Tractor hitch | |
| Rear Type | II/I |
| Control | position and draft control |
| Rear lift | 3969 lbs 1800 kg |
| Power Take-off (PTO) | |
| Rear PTO | independent |
| Clutch | hydraulic wet disc |
| Rear PTO Type | 540/1000 |
| Dimensions & Tires | |
| Wheelbase | 84.5 inches 214 cm |
| Weight | 5733 lbs 2600 kg |
| Front tire | 6.00-16 |
| Rear tire | 12.4/11-36 |
 Full dimensions and tires ... | |

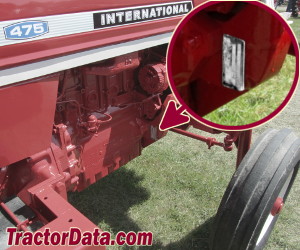

| 475 Serial Number Location | |
 | |
| Front-right axle support. |
| Electrical | |
| Charging system | alternator |
| Charging amps | 28 |
| Battery volts | 12 |
| Battery AH | 95 |
